[US Warehouse] INJORA +4mm Extended Aluminum Front Rear Complete Axles for 1/18 TRX4M TRX4MT

Description

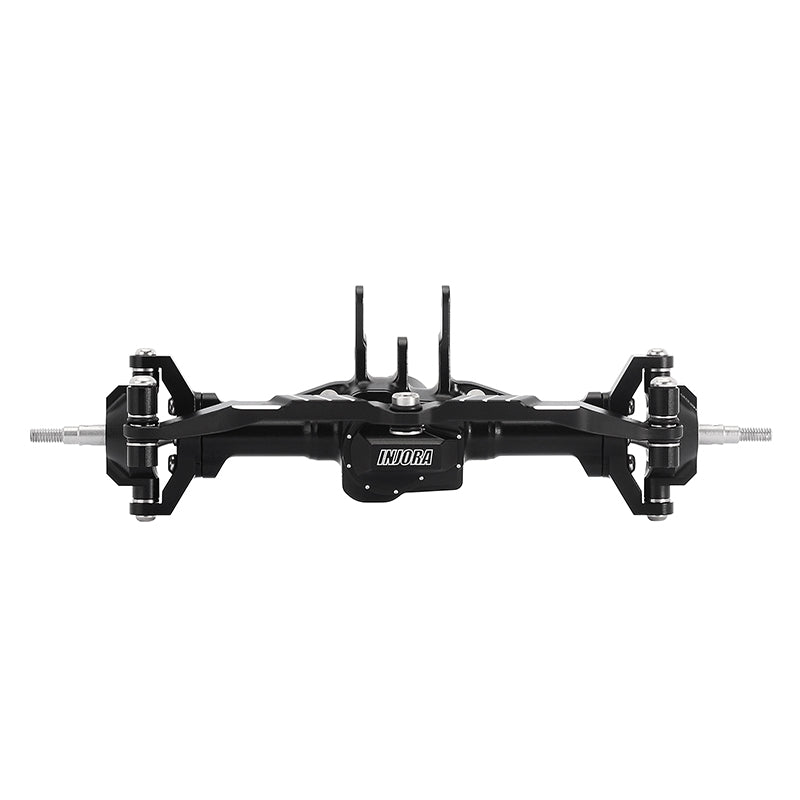

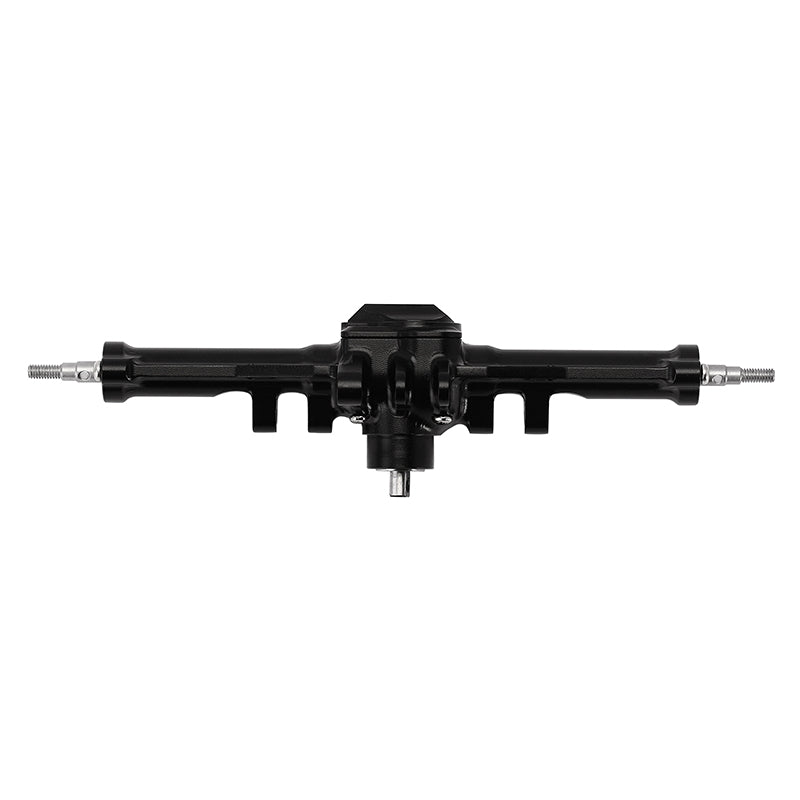

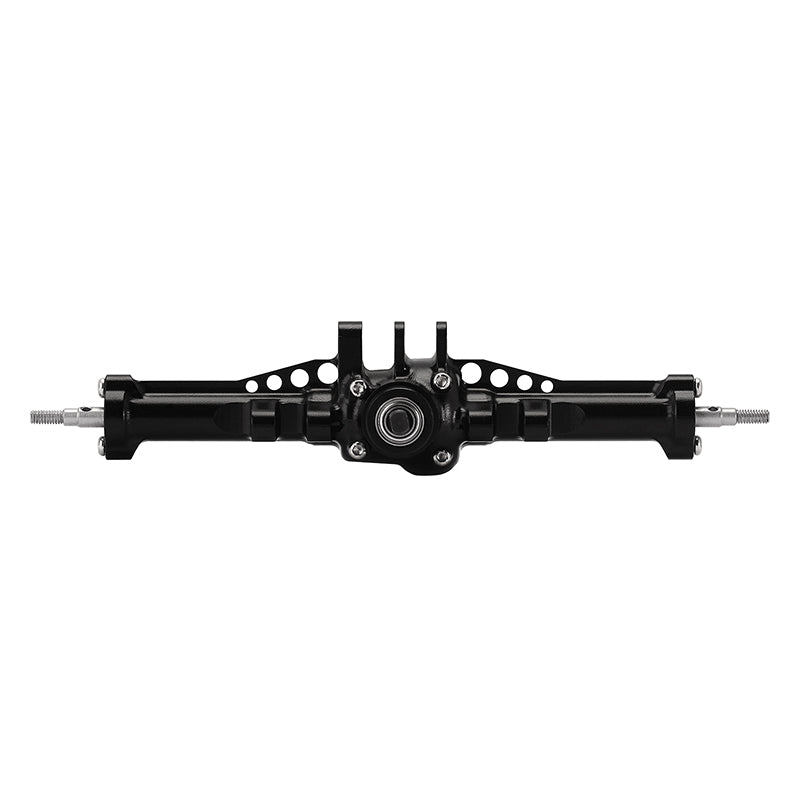

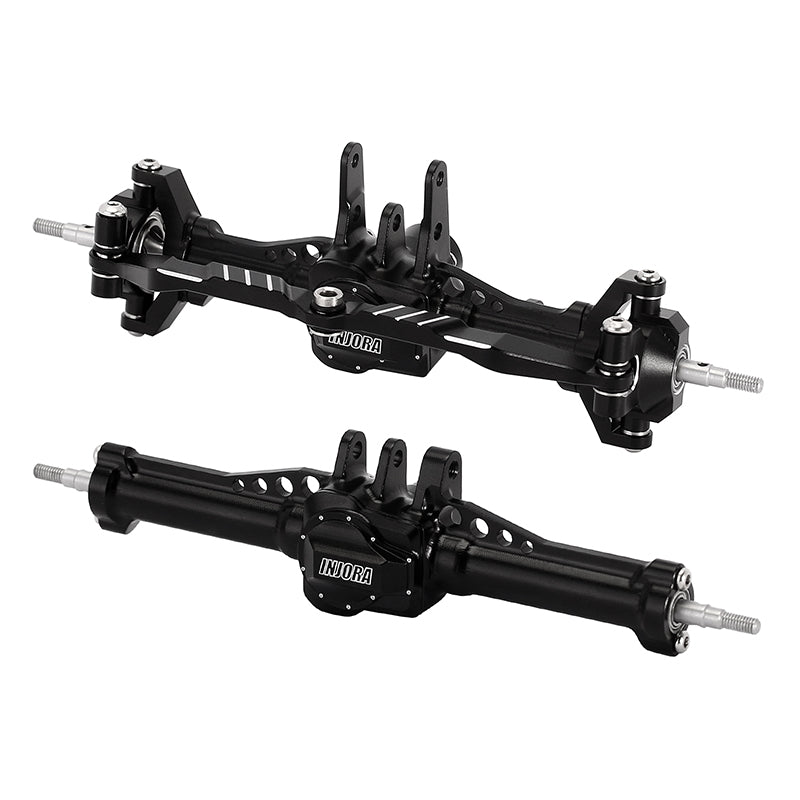

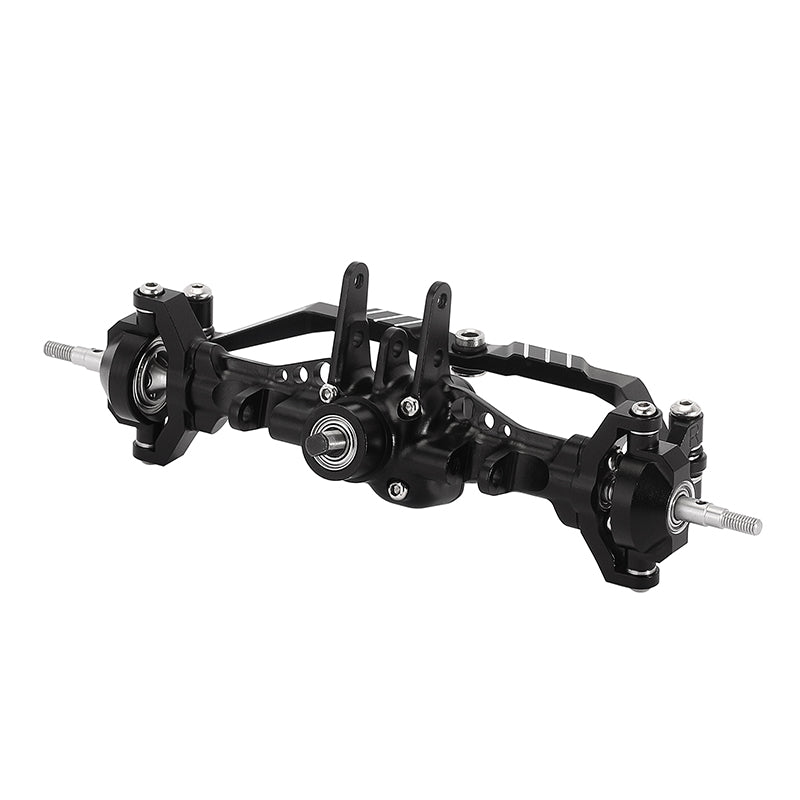

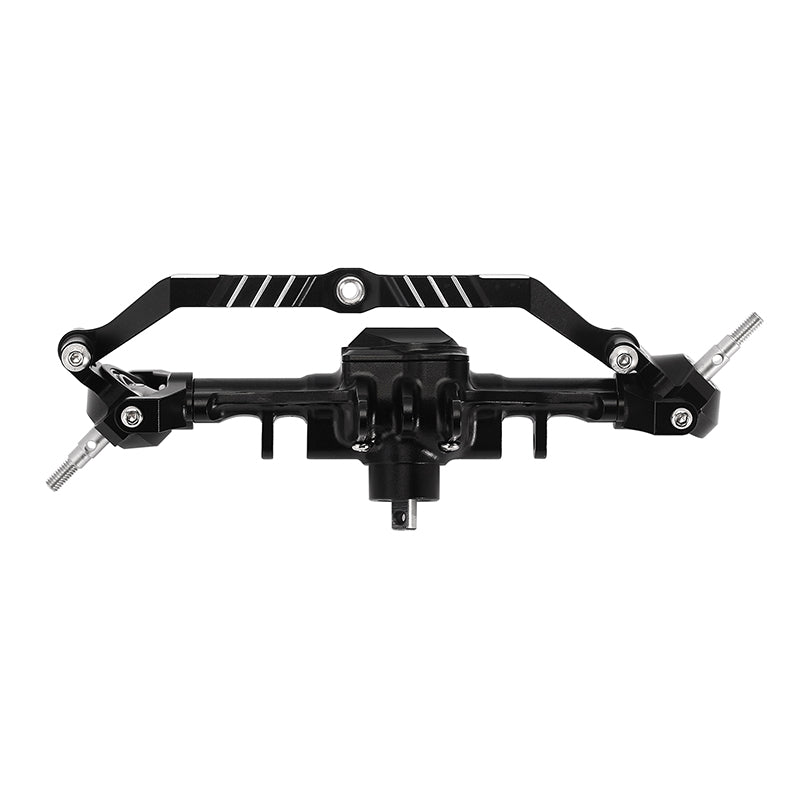

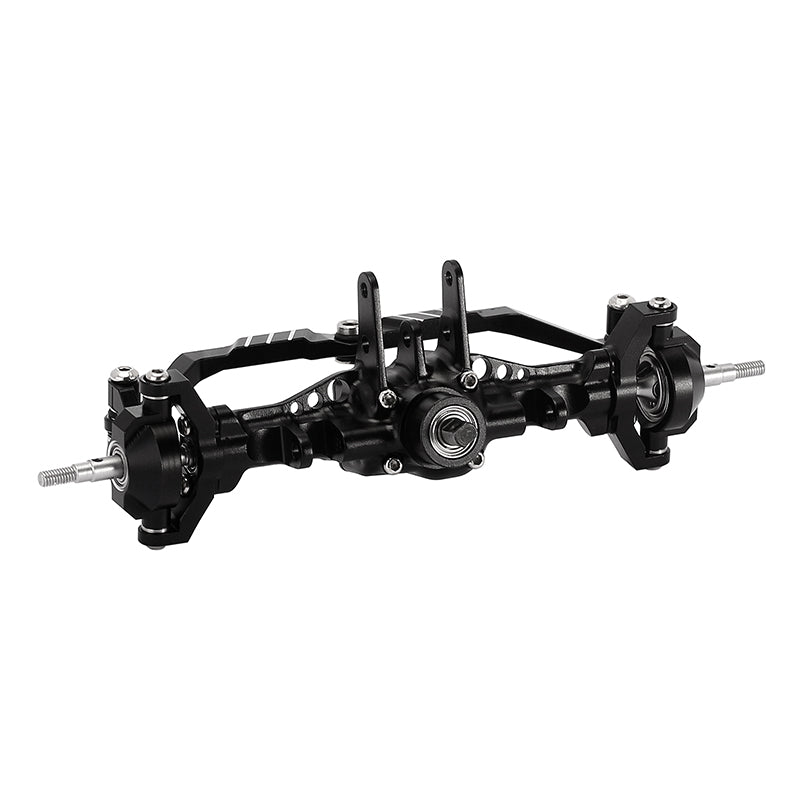

INJORA CNC Aluminum 4mm Extended Front Rear Complete Axles for 1/18 RC Crawler TRX4M TRX4MT

Compatible with: 1/18 RC crawler TRX4M, TRX4MT?
Note:

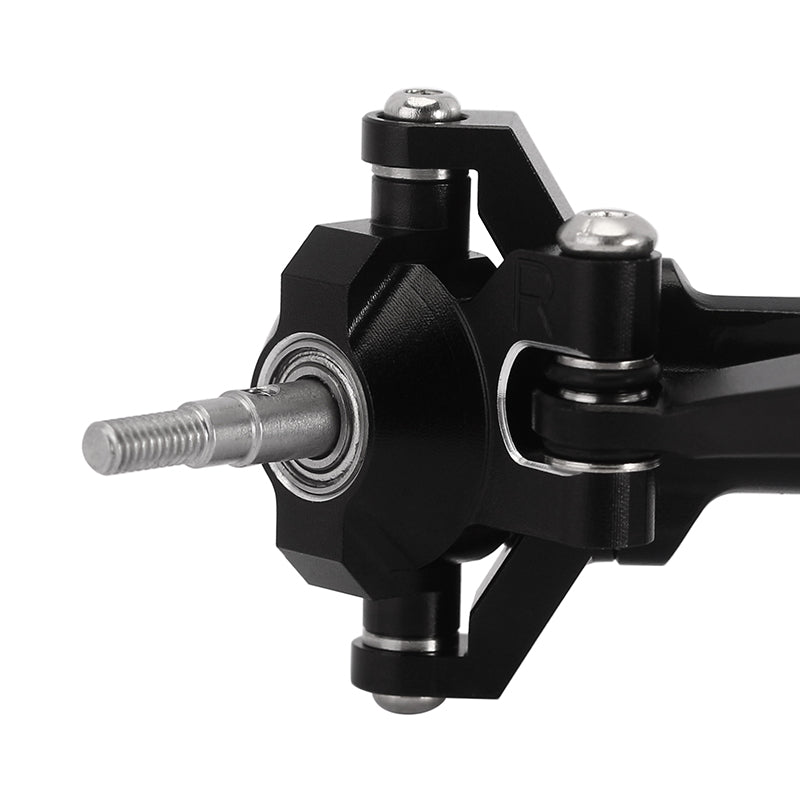

• Compatible with both INJORA and stock TRX4M chassis, servo mounts, diff covers, gears, C hubs, steering knuckles, chassis links.
• Not compatible with original TRX4M size steering links and dogbone shafts as the axle housings are 4mm extended per side.

Features:

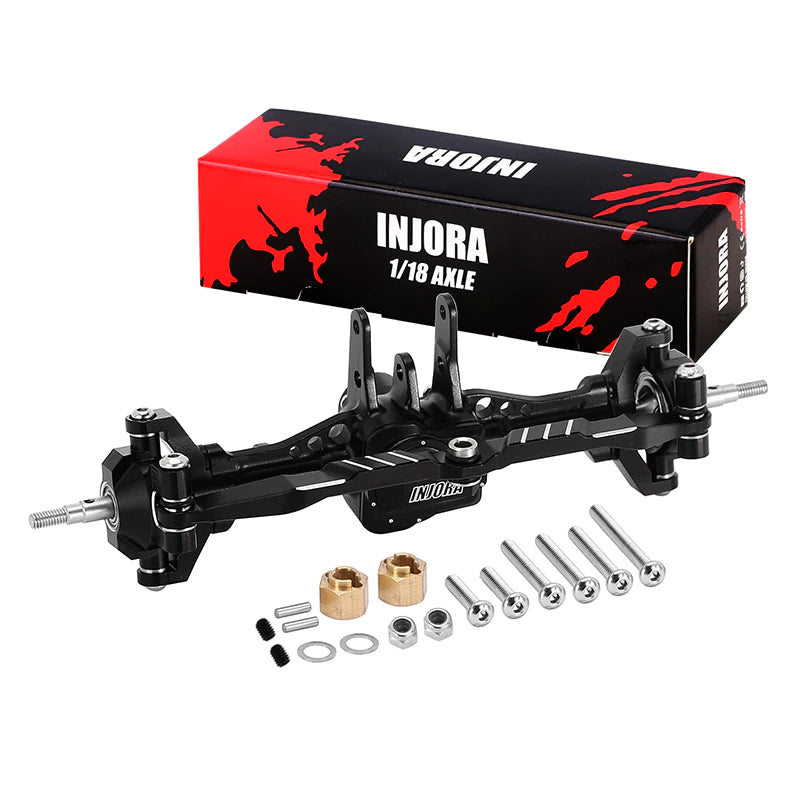

• Pre-assembled complete axles.?Please grease the axles before installation.

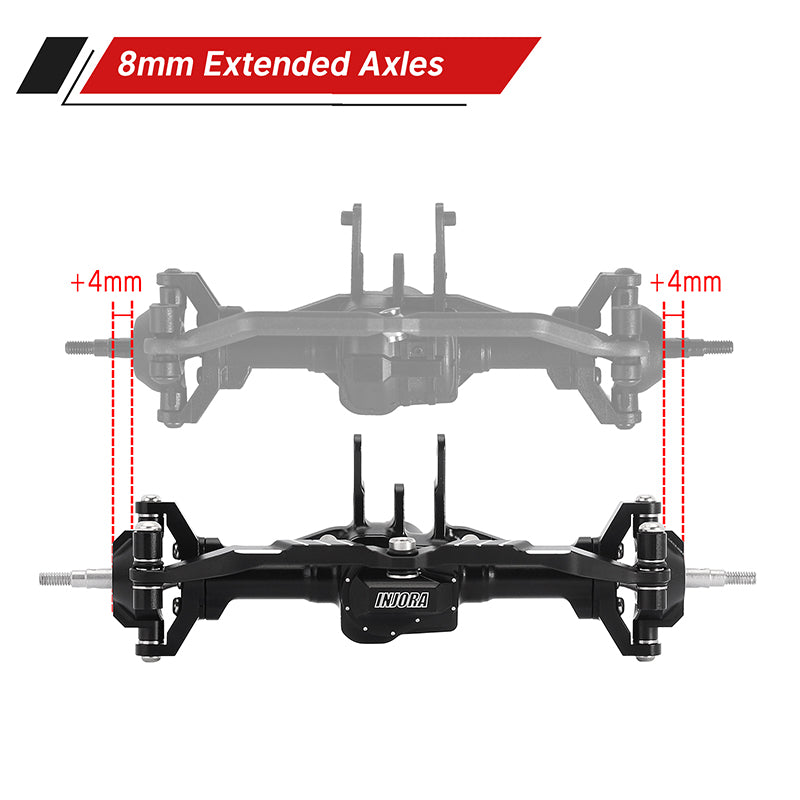

• +4mm axles increase the width of each side by 4mm, increase total length by 8 mm
• The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened.
• 4mm extended desgin provides better stability and climbing performance

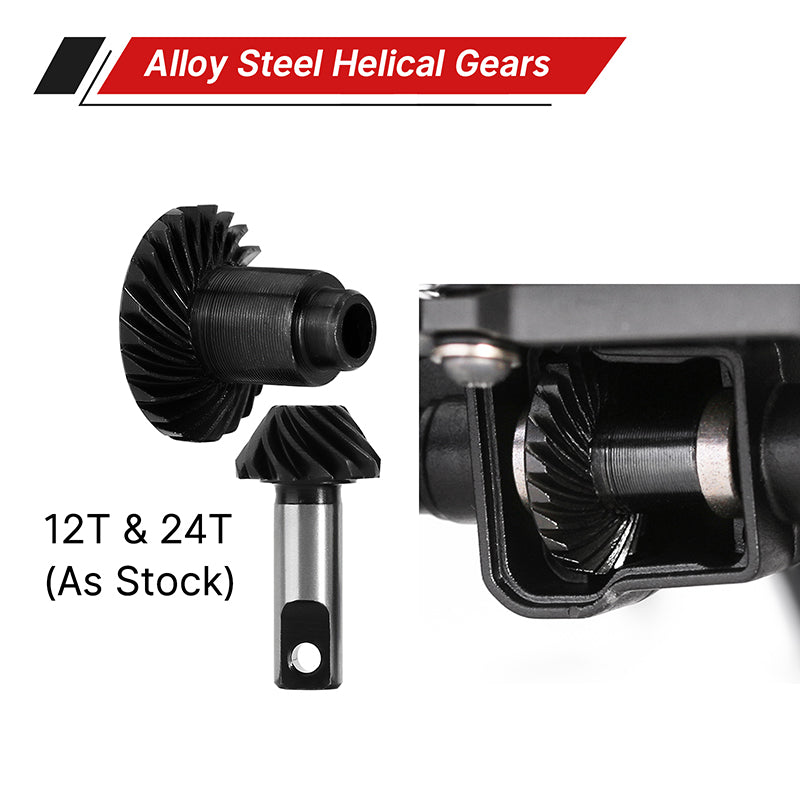

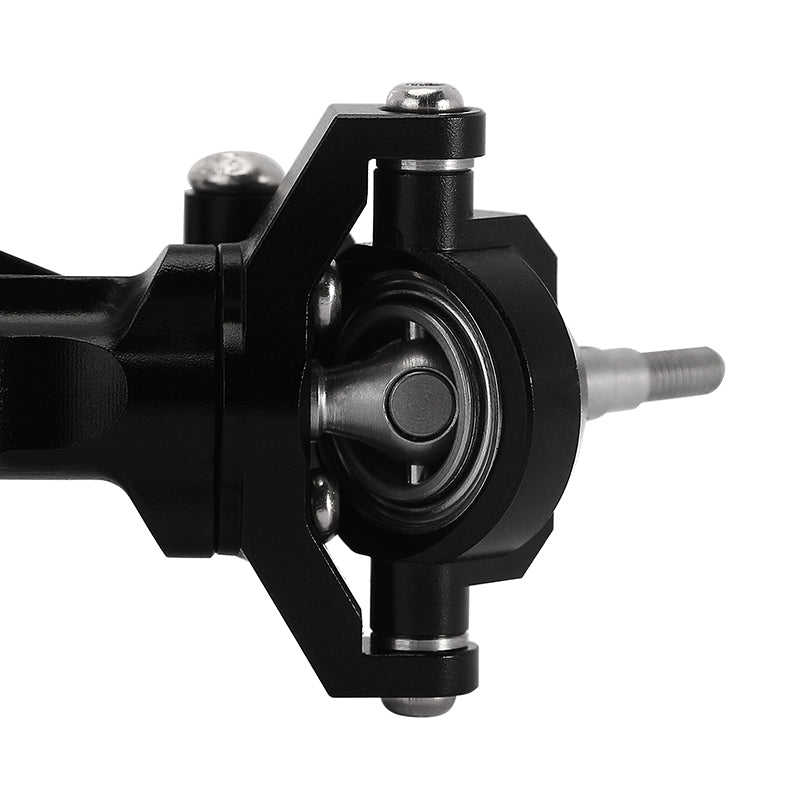

• Hardened CVD shafts and steel 12/24T gears

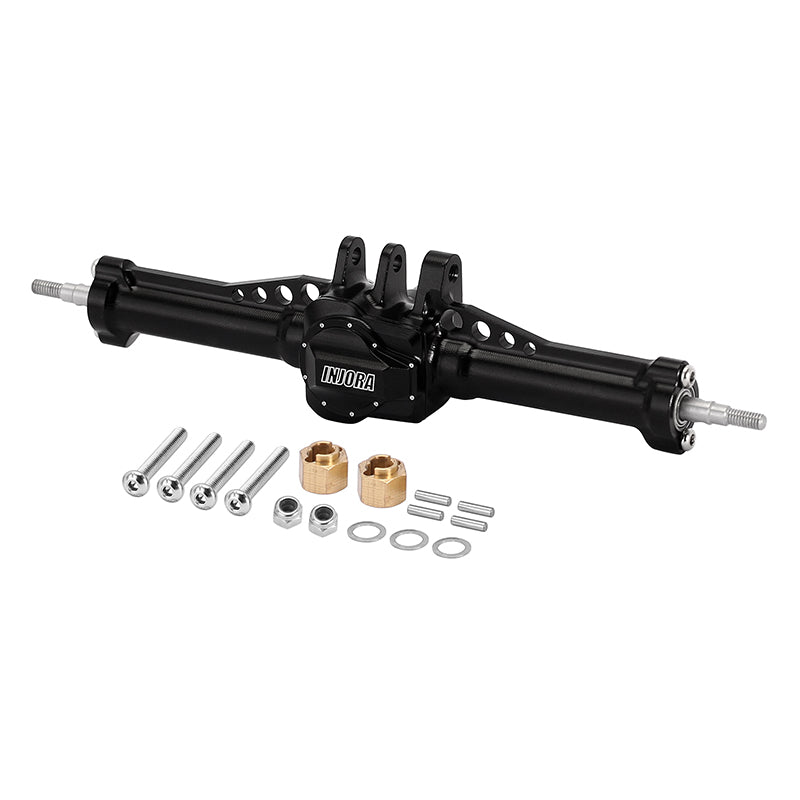

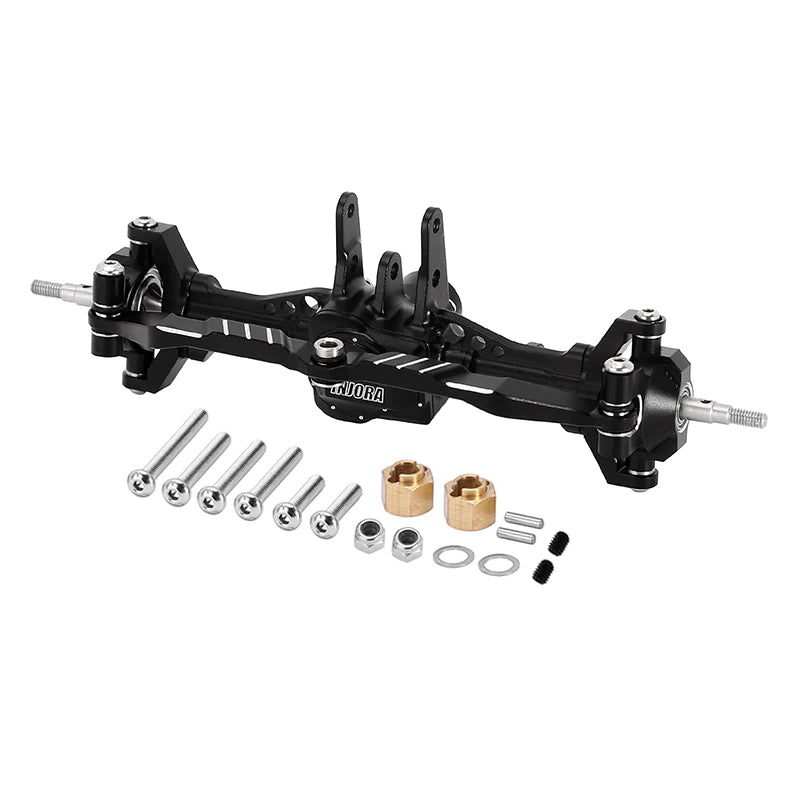

• Come with 5mm(+1mm) brass wheel hexes and nuts

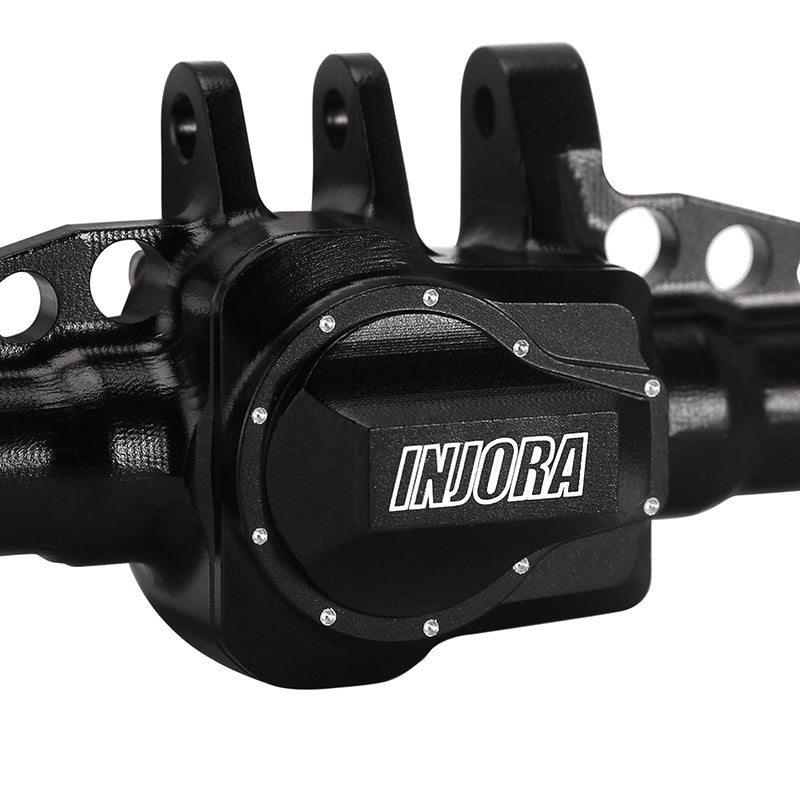

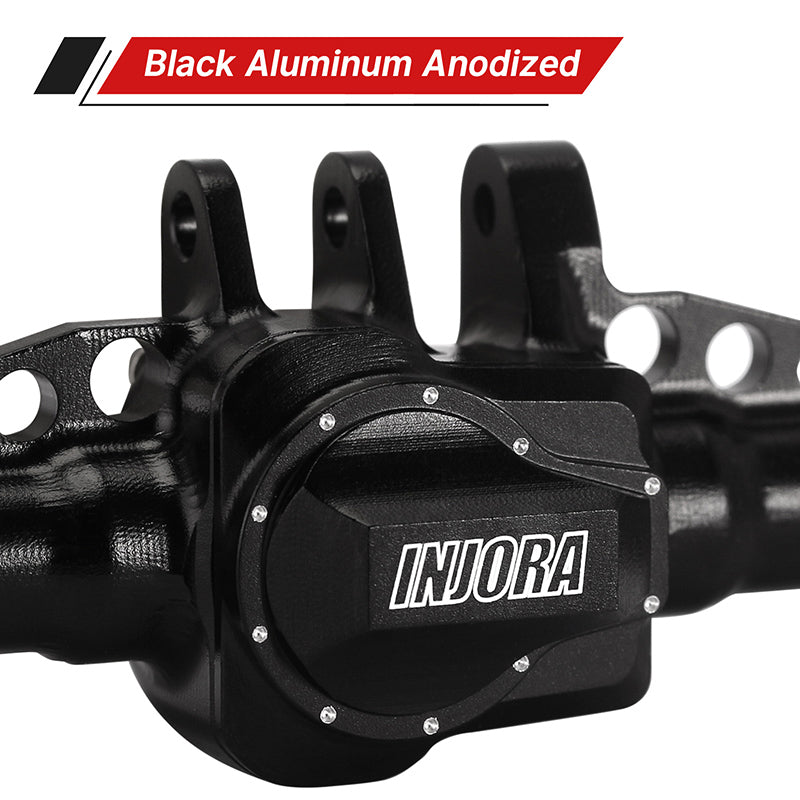

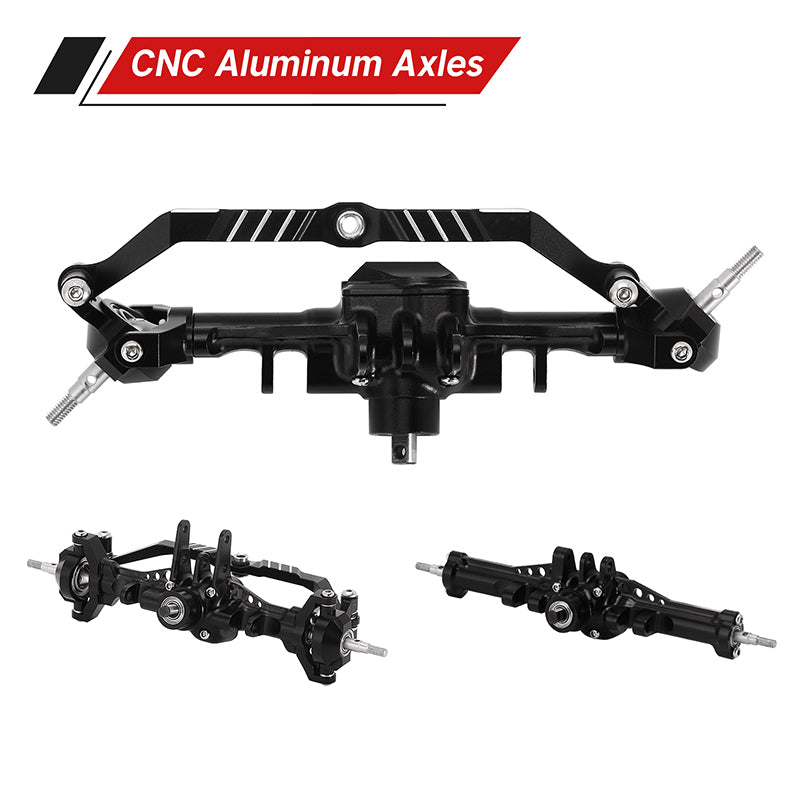

• CNC machined, black anodized
• Excellent workmanship and high precision

Specifications:

• Part Number: 4M-61
• Housing Material: Aluminum
• Gear Material: 20CrMo Alloy Steel
• CVD Shaft Material: Hardened Steel
• Gear Ratio: 24/12=2:1 (Same as Stock)

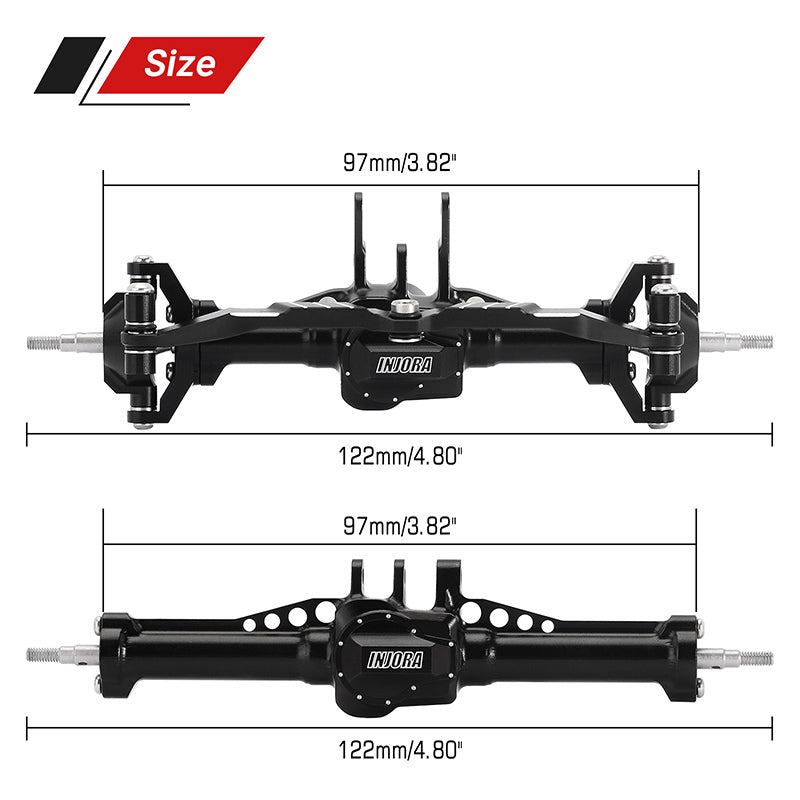

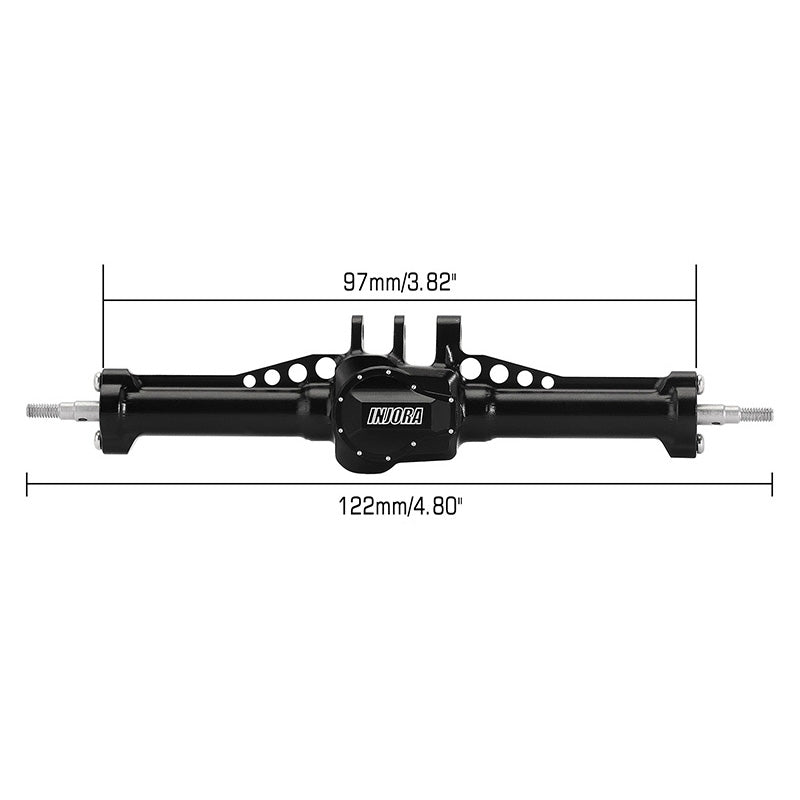

• Total Length: 122mm (4.80in)
• Front Axle Weight: 48g (1.69oz)
• Rear Axle Weight: 42g (1.48oz)
