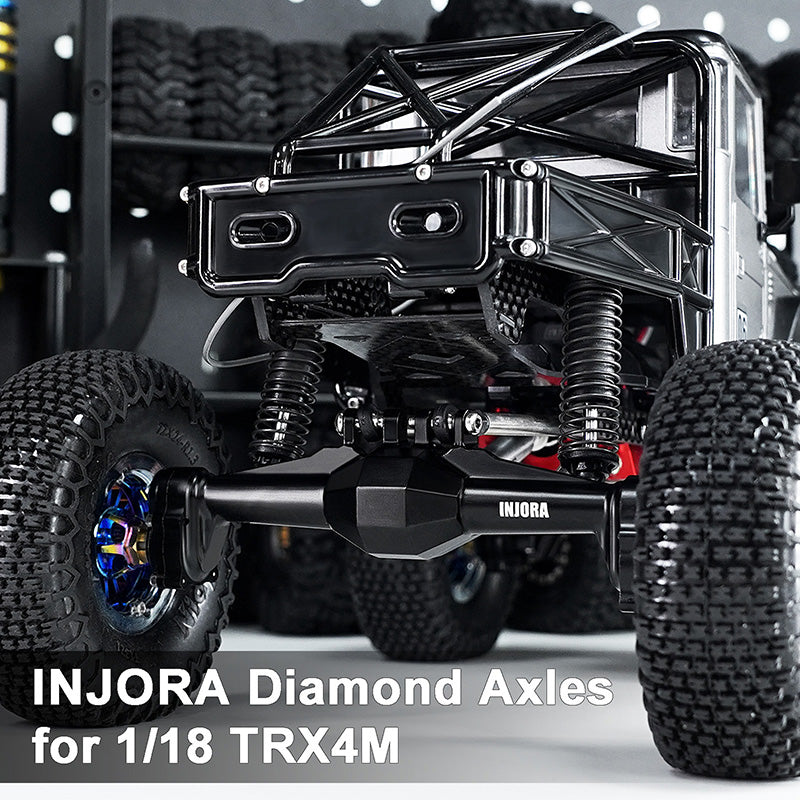

[US Warehouse] INJORA +5mm Diamond Portal Axles with Lay Down Servo Mount & Links for 1/18 TRX4M

Description

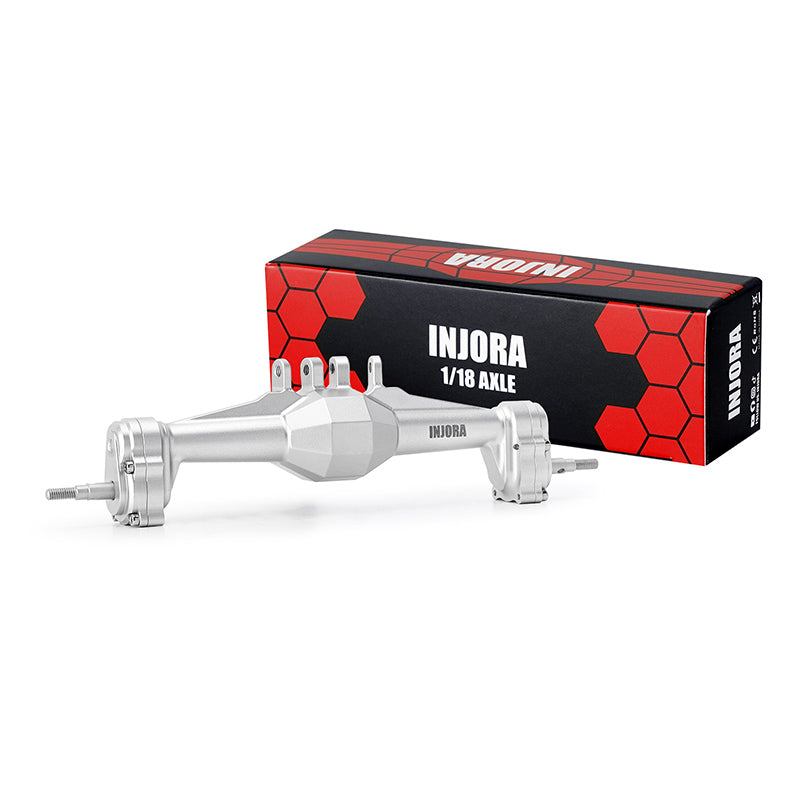

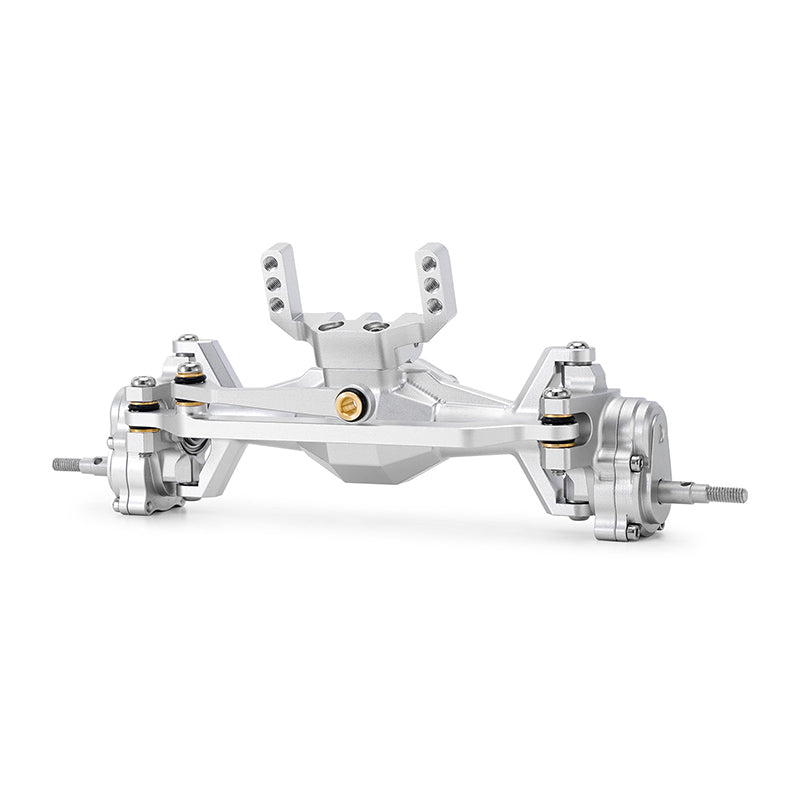

INJORA +5mm Diamond Portal Axles with Lay Down Servo Mount & Links for 1/18 RC Crawler TRX4M
Note:

• Not compatible with stock TRX4M chassis as the lay lown servo mount is wider than stock. Compatible with INJORA universal chassis.
• Compatible with both INJORA and stock TRX4M upgrade parts: axle gears, chassis links, drive shafts.

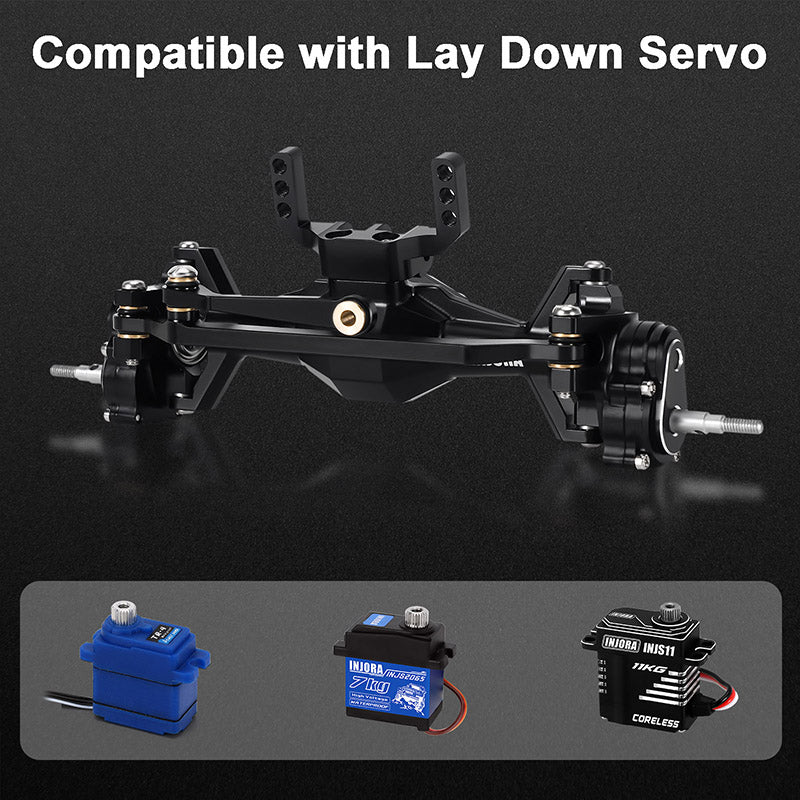

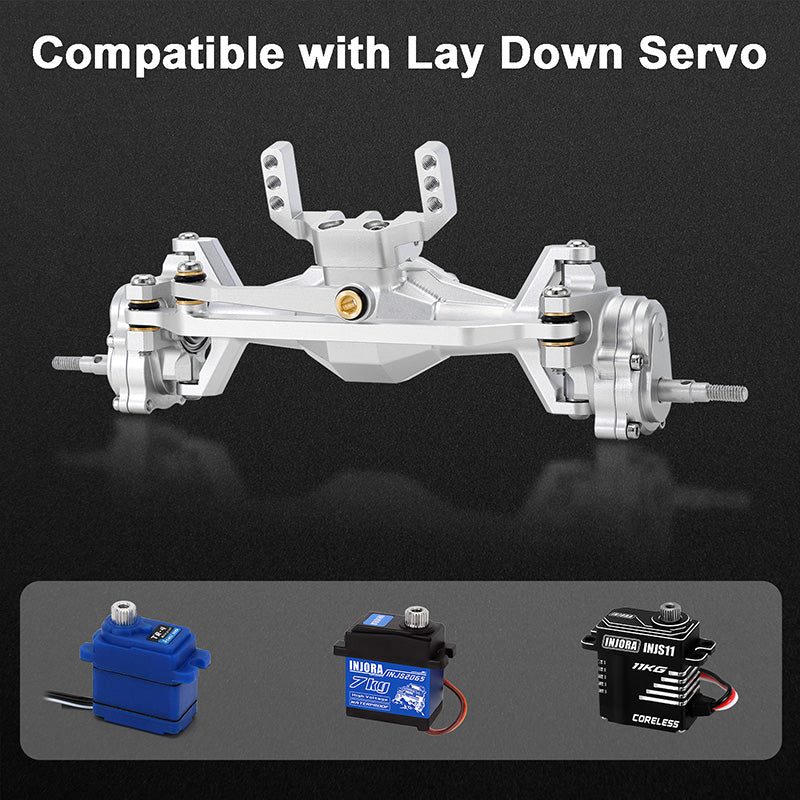

• Only compatible with these servos: Stock TRX4M servo, INJORA 7kg servo?INJS2065 (please use the bushings), INJORA 11kg servo INJS11

Features:

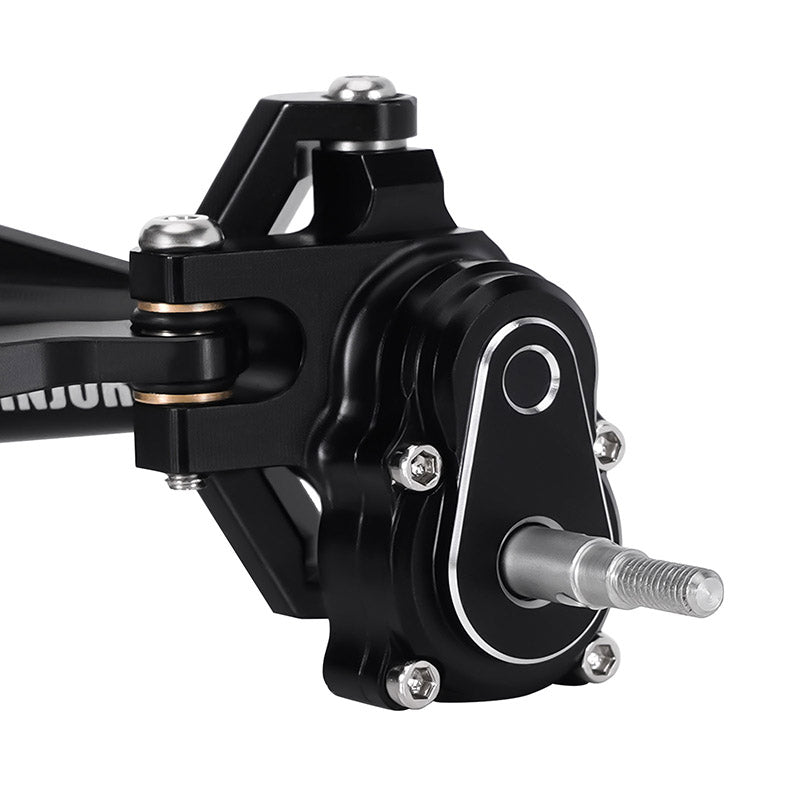

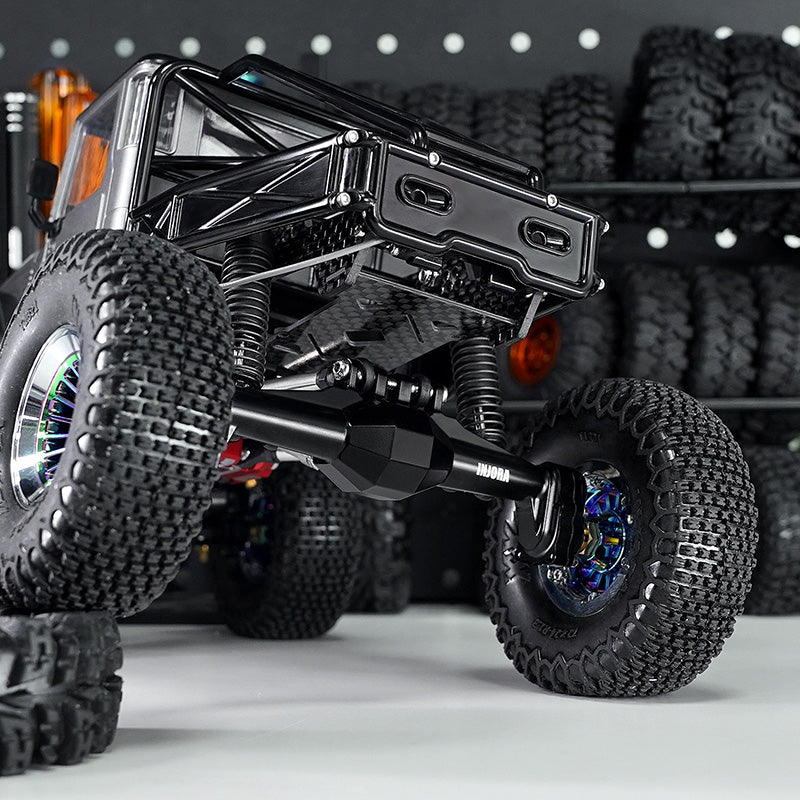

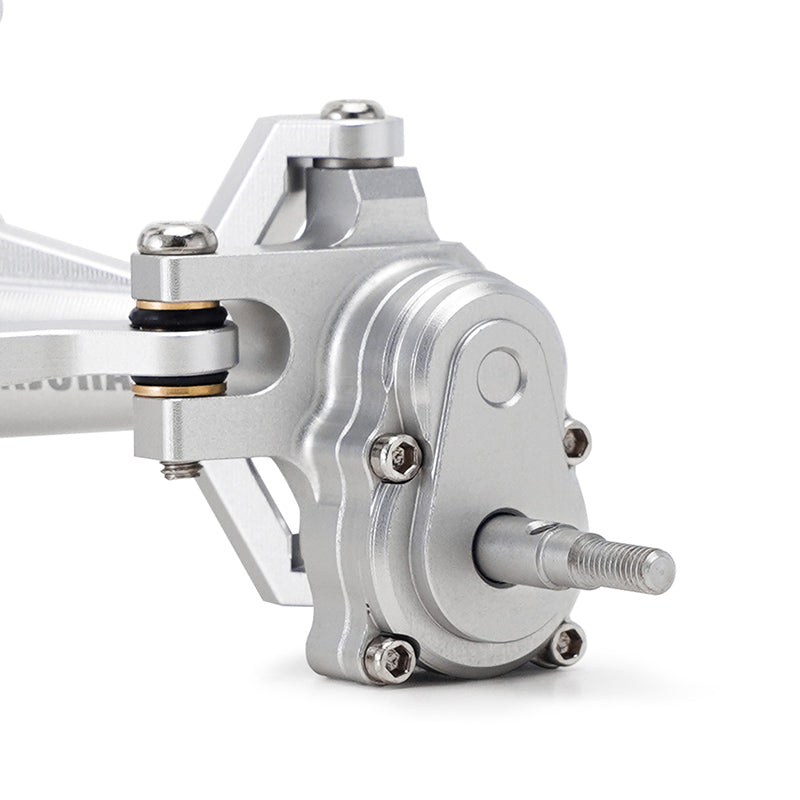

• INJORA portal axles lift the pumpkin to provide ground clearance.

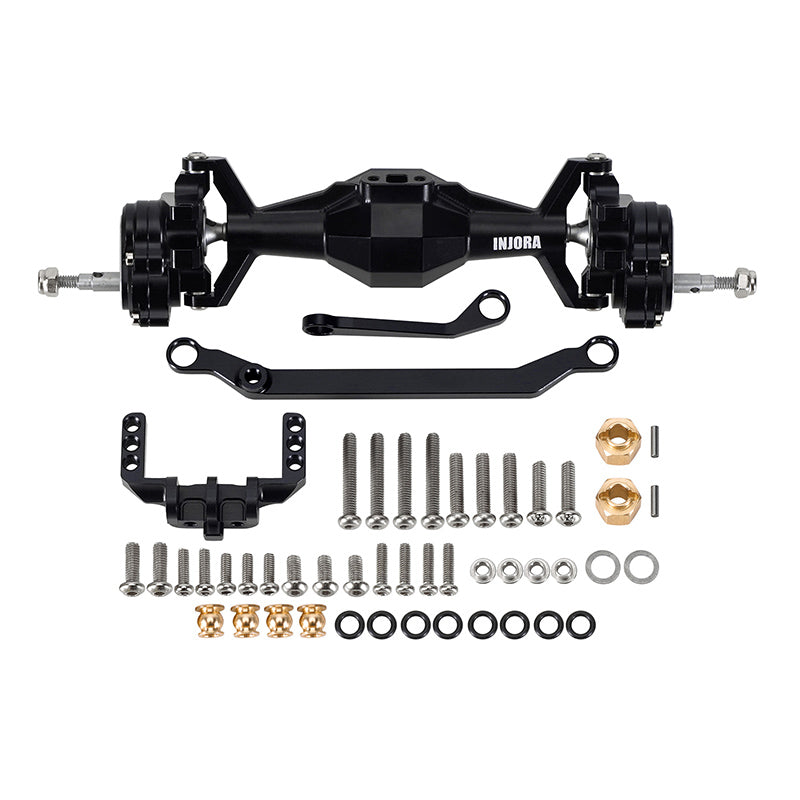

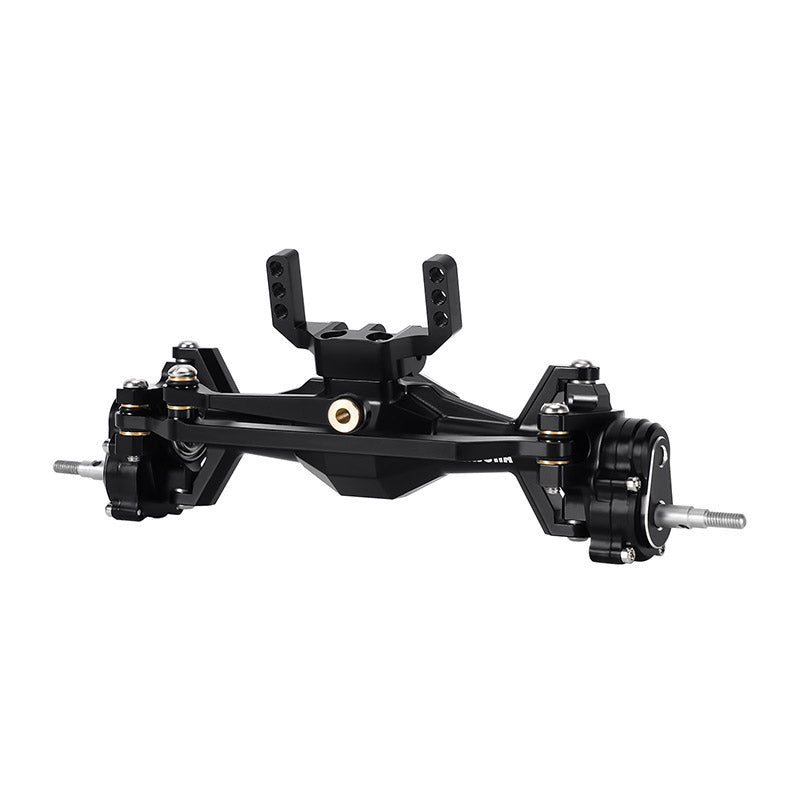

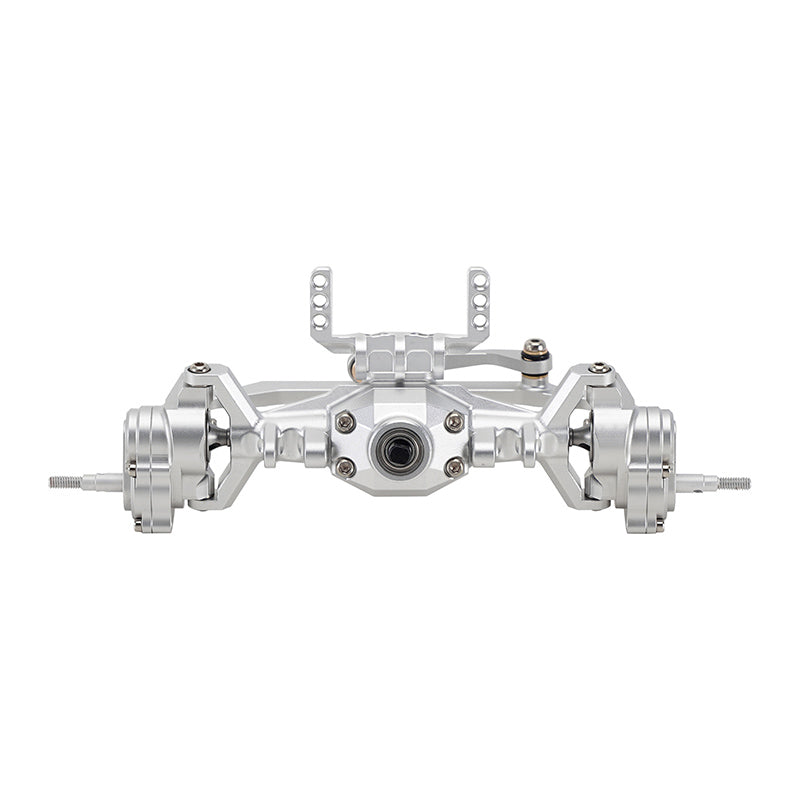

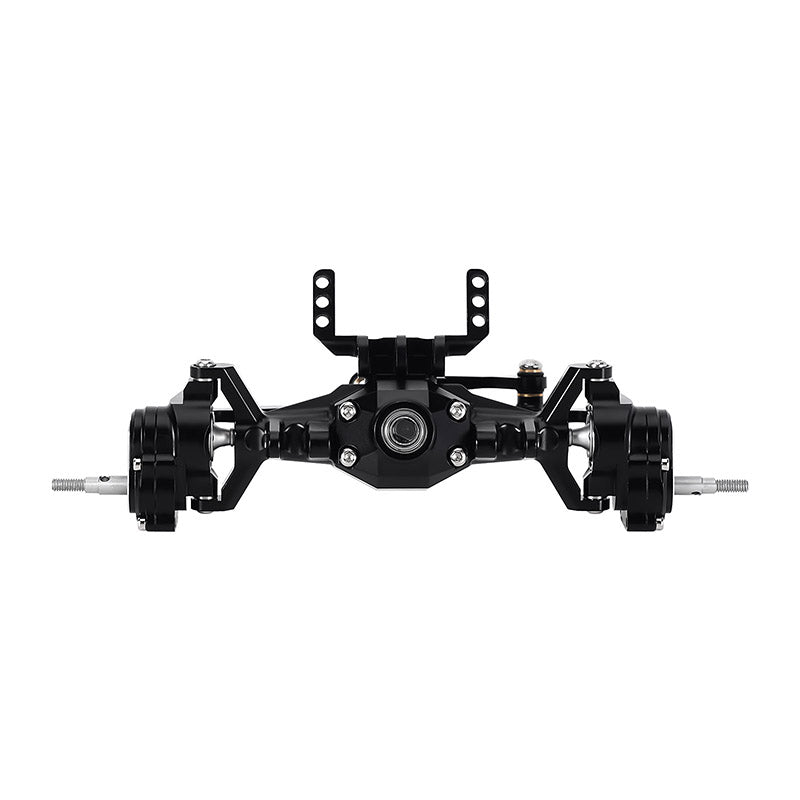

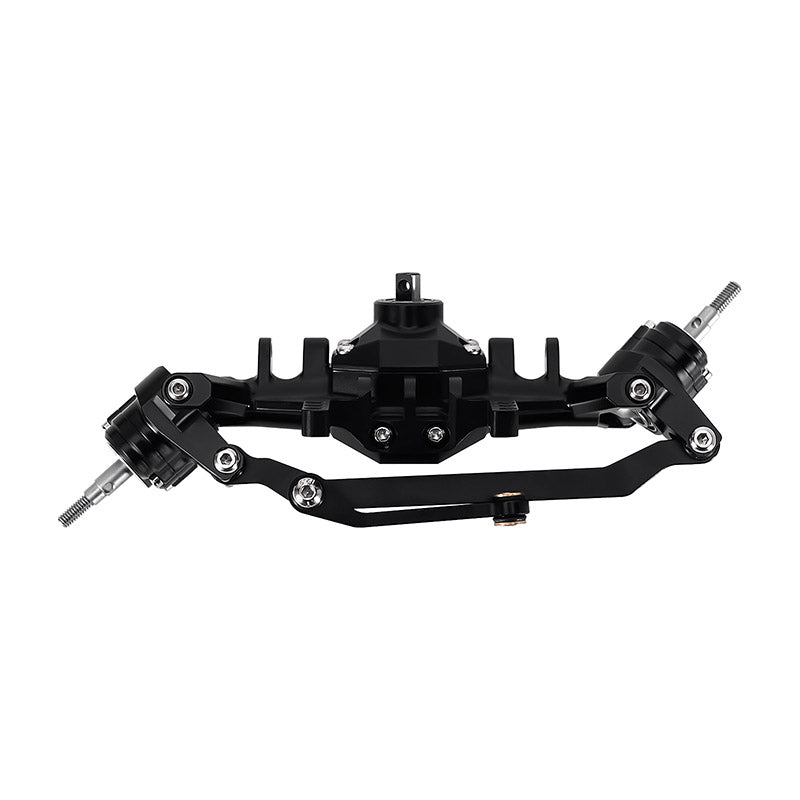

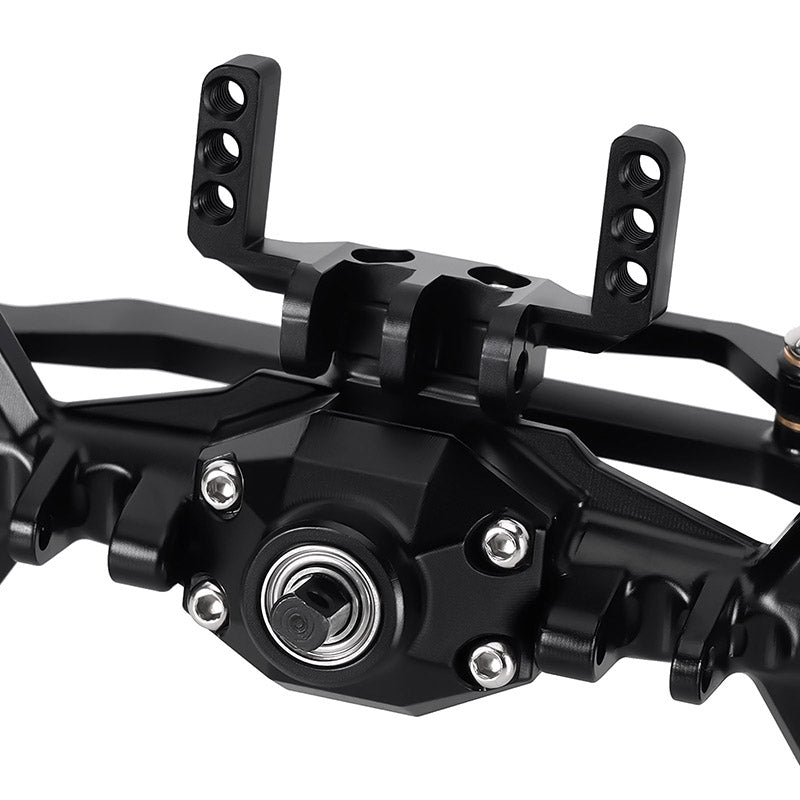

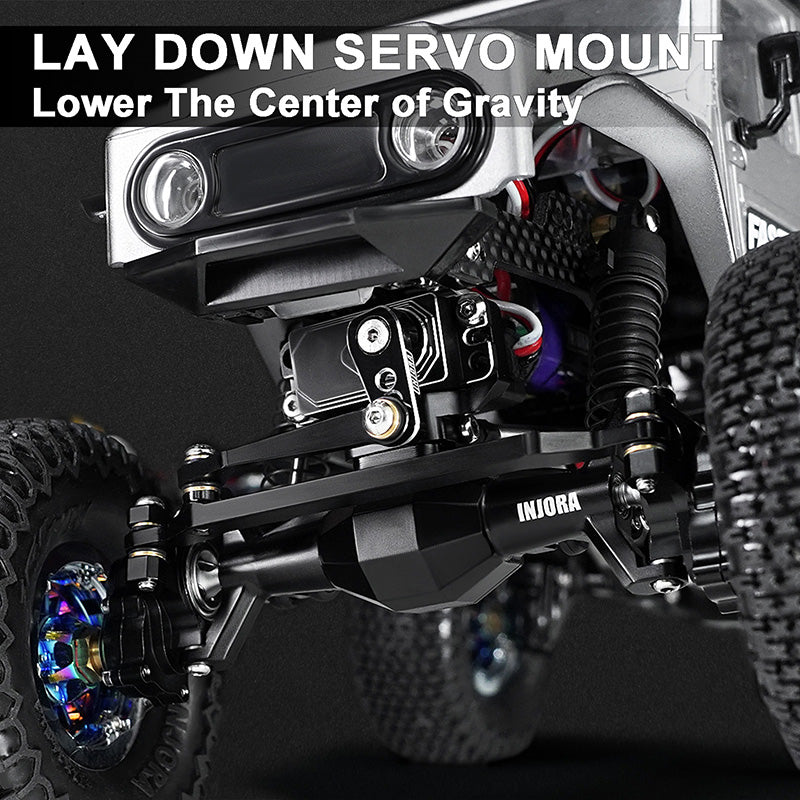

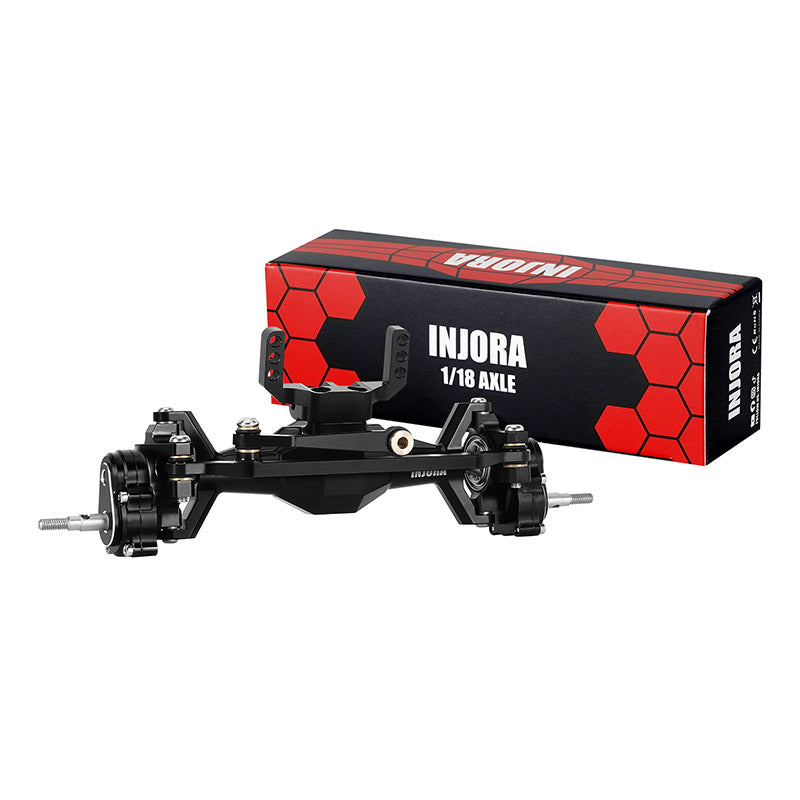

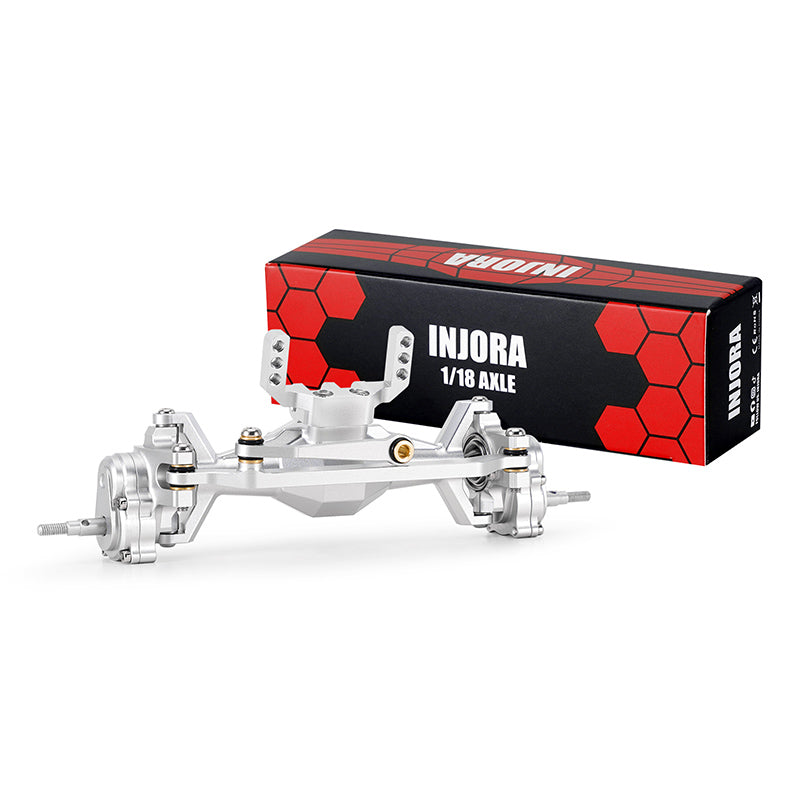

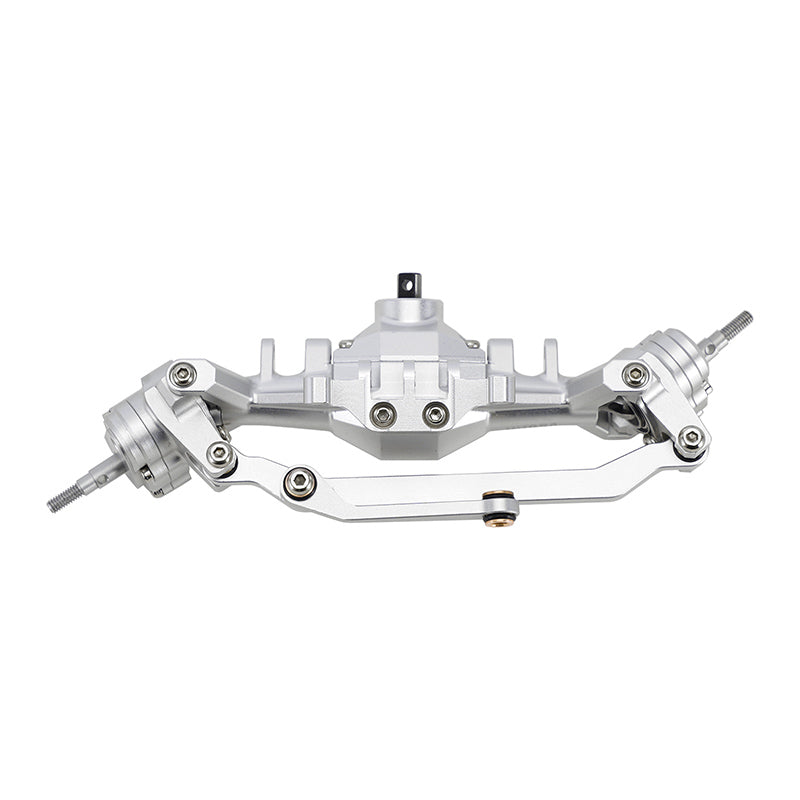

• Equipped with a servo-on-axle lay down servo mount.

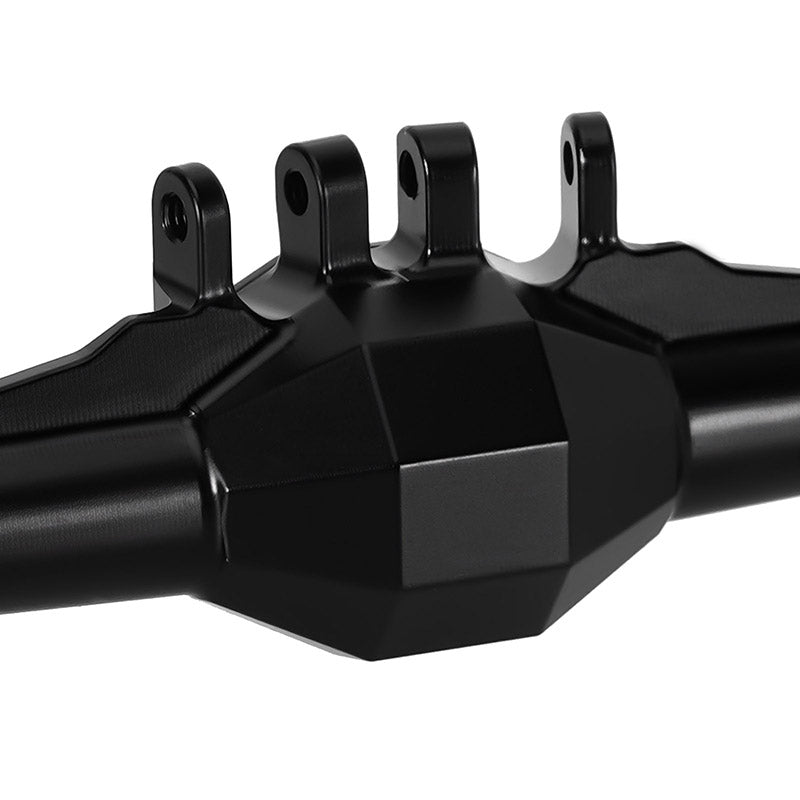

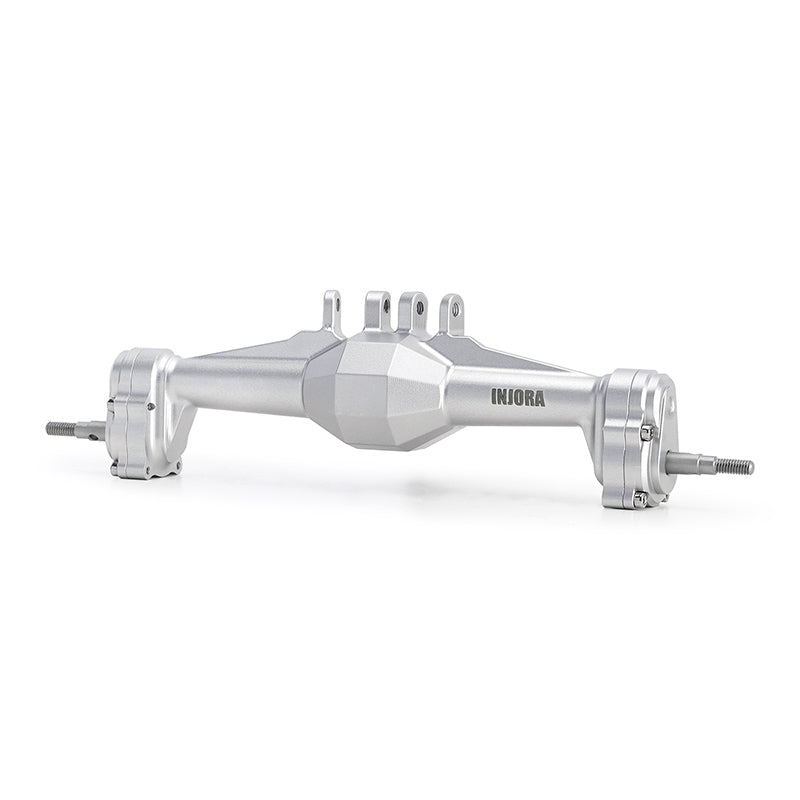

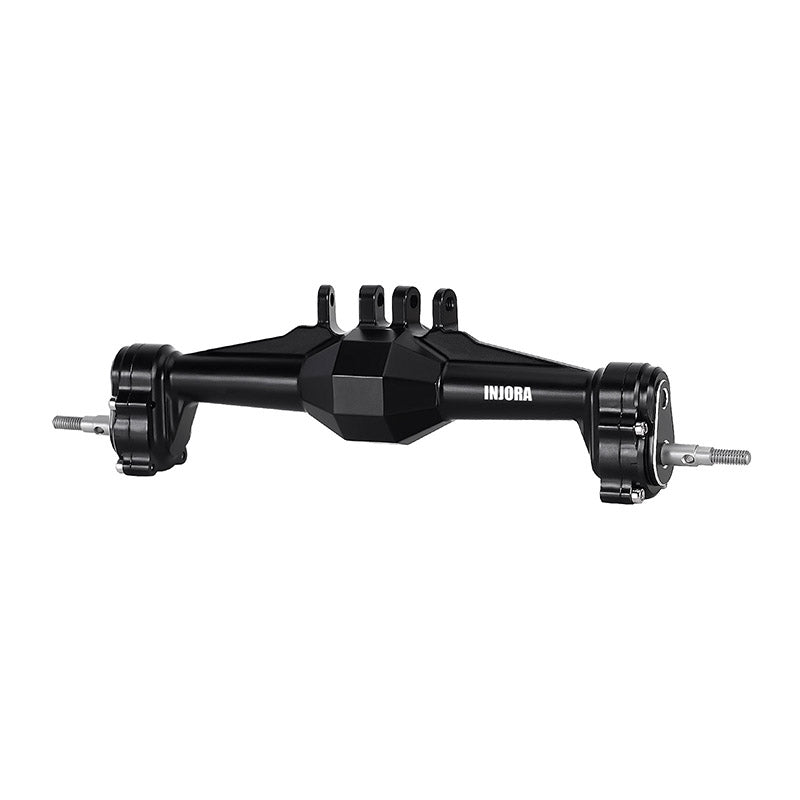

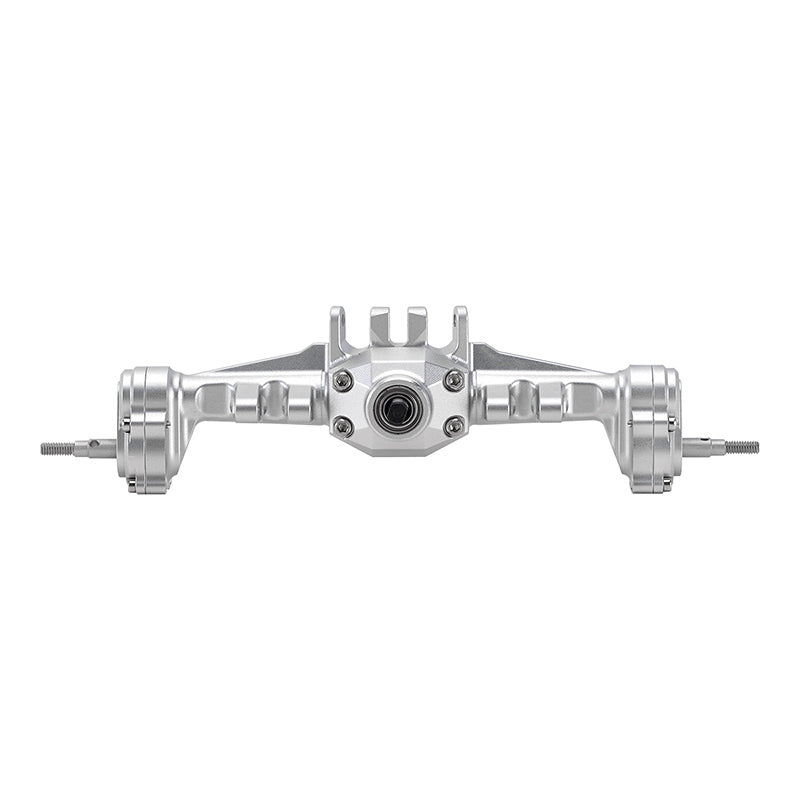

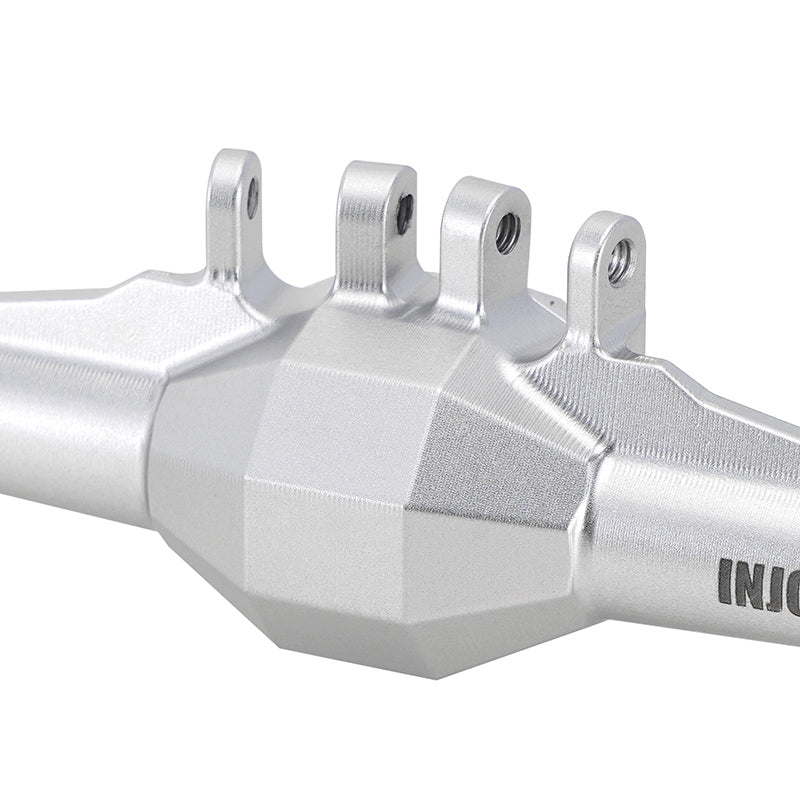

• Diamond shaped pumpkin for more realistic scale look.

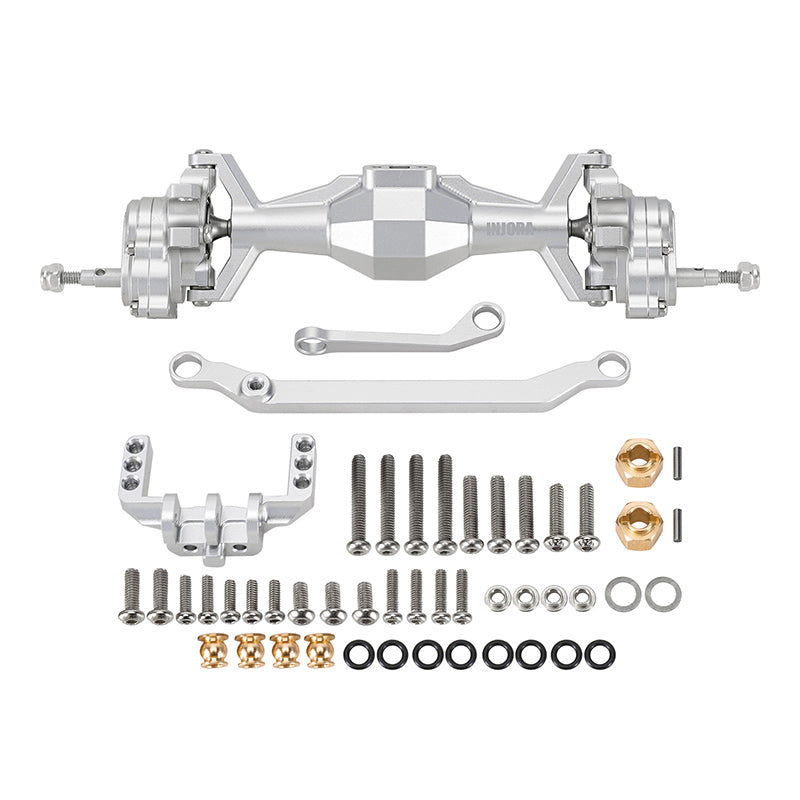

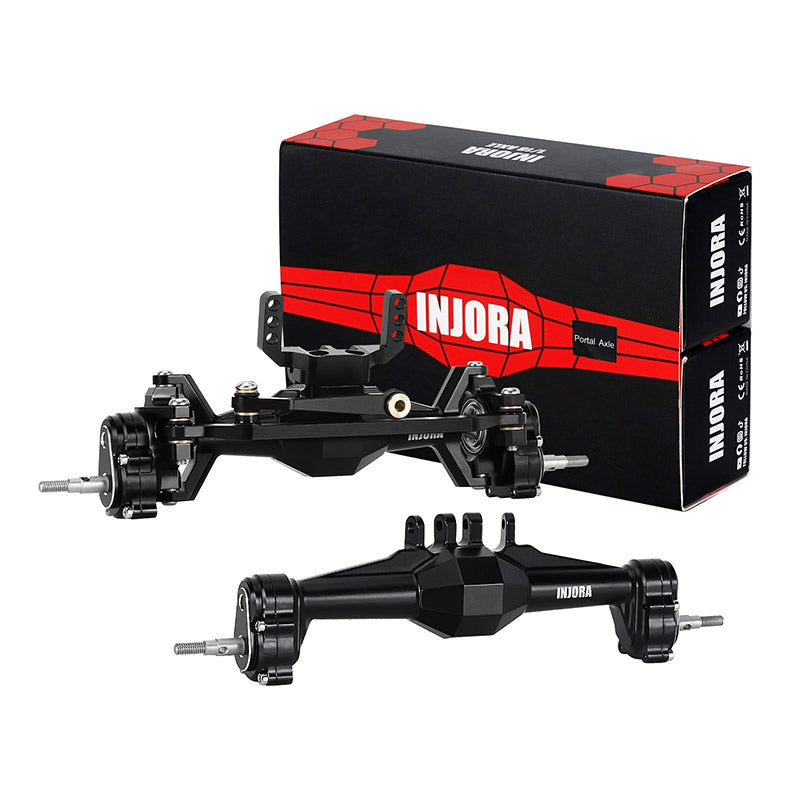

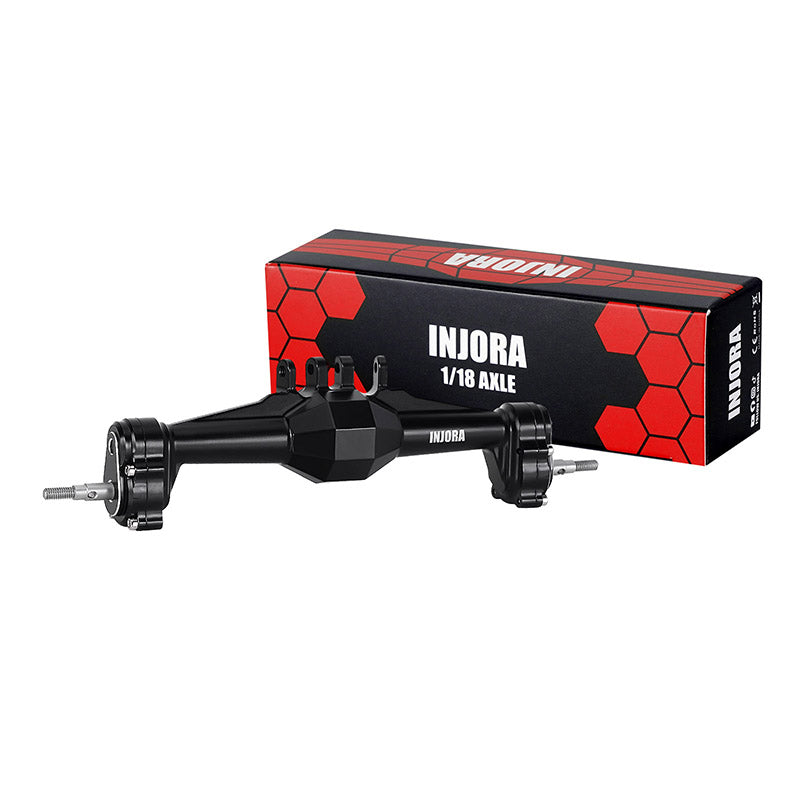

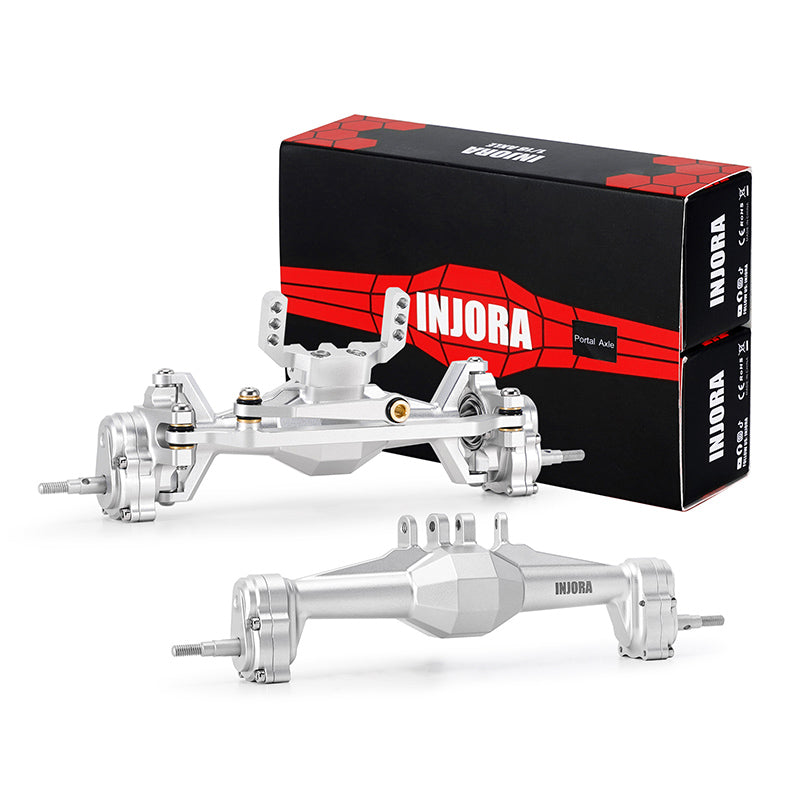

• Pre-assembled complete axles. Please grease the axles before installation.

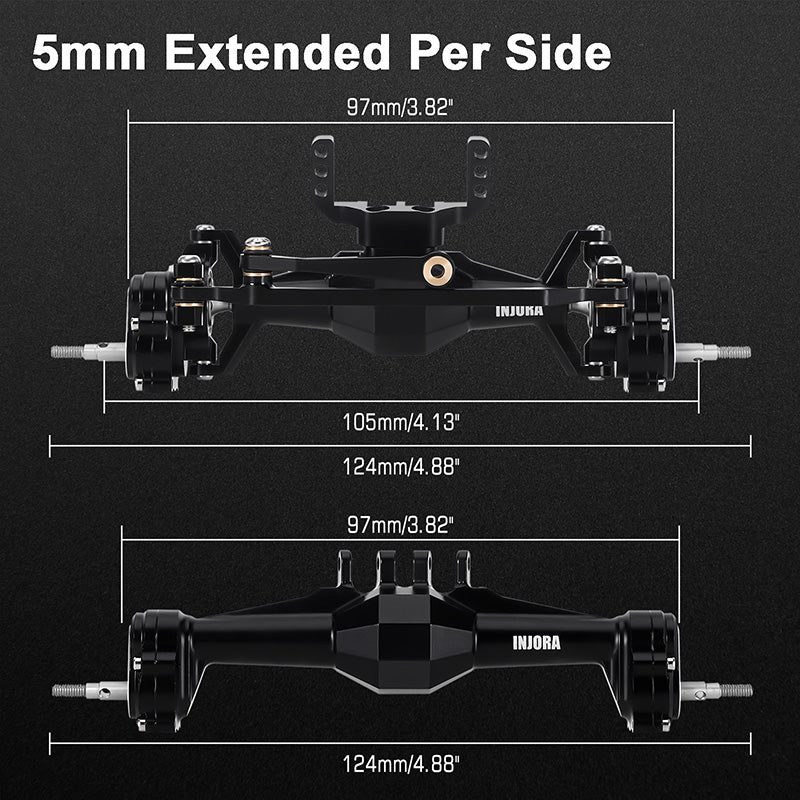

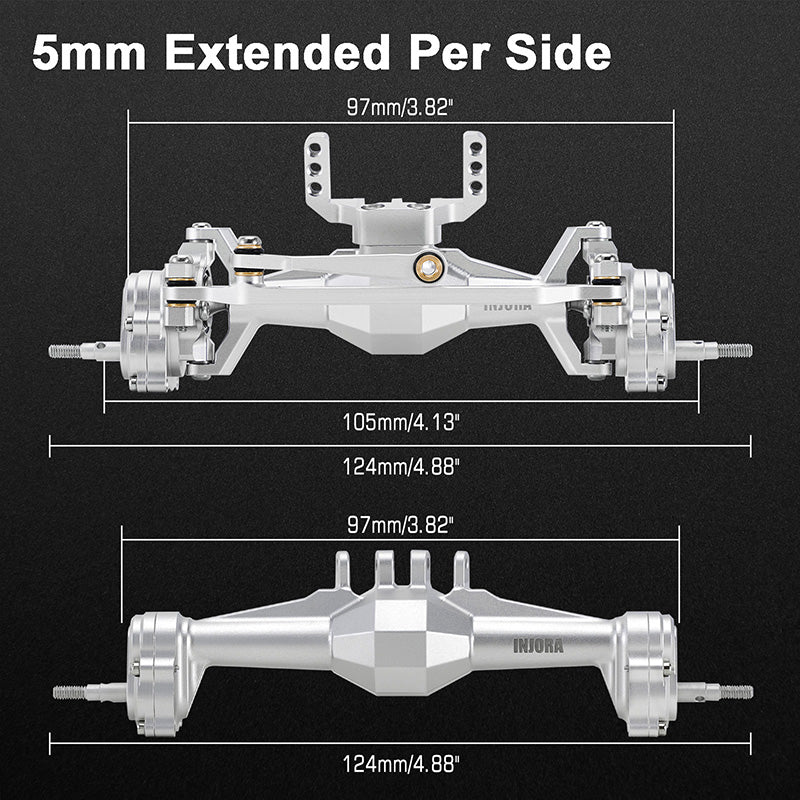

• +5mm axles increase the width of each side by 5mm, increase total length by 10 mm.
• The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened.
• 5mm extended desgin provides better stability and climbing performance.

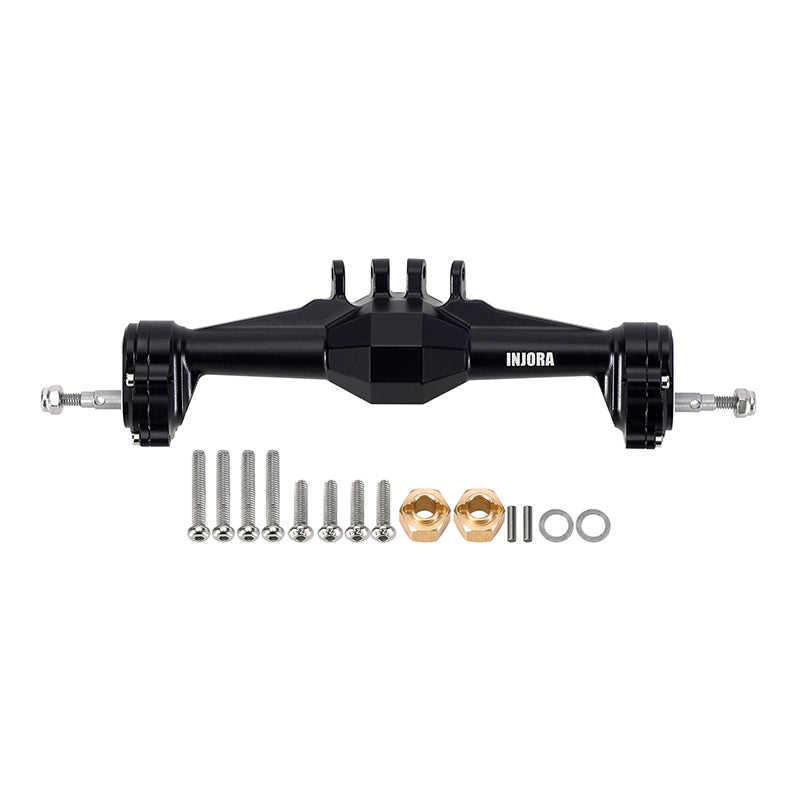

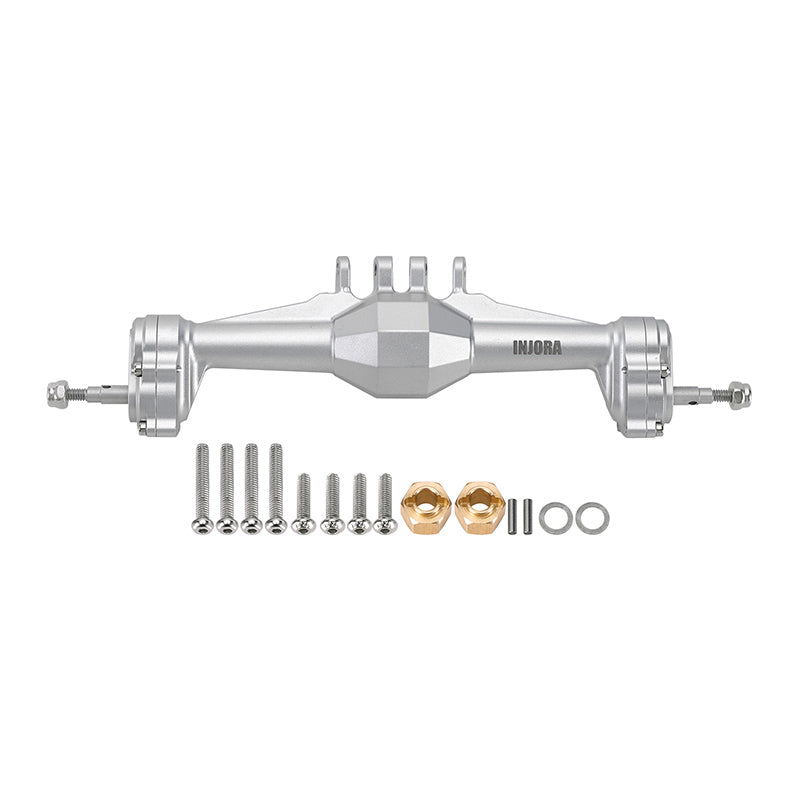

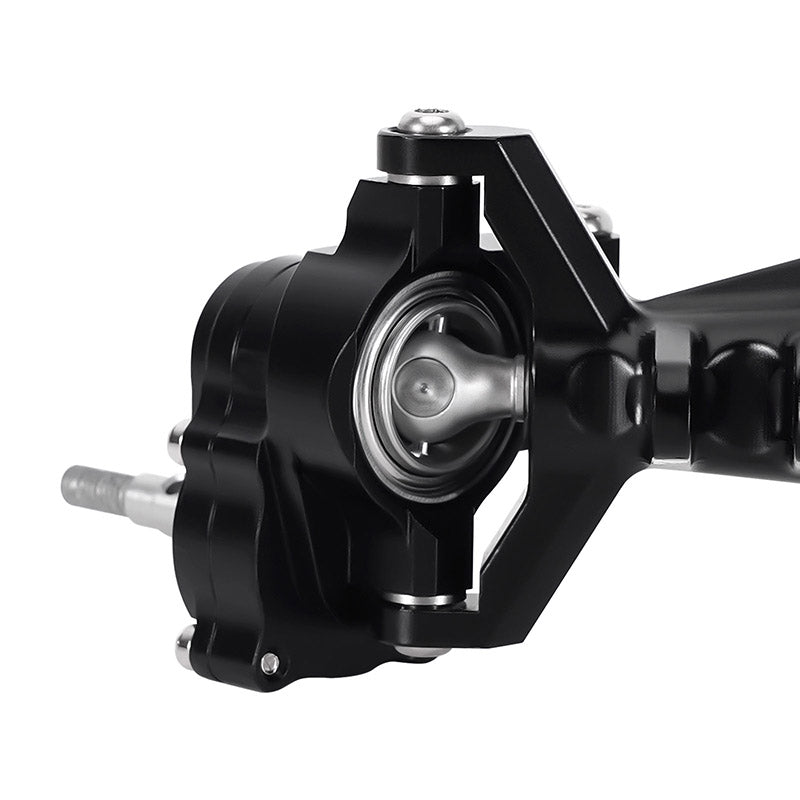

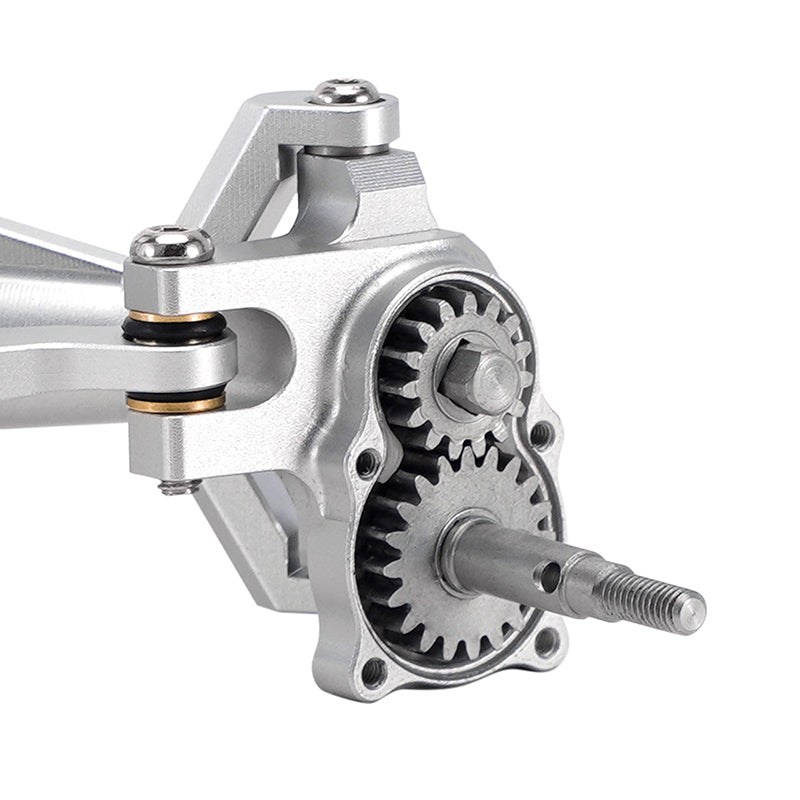

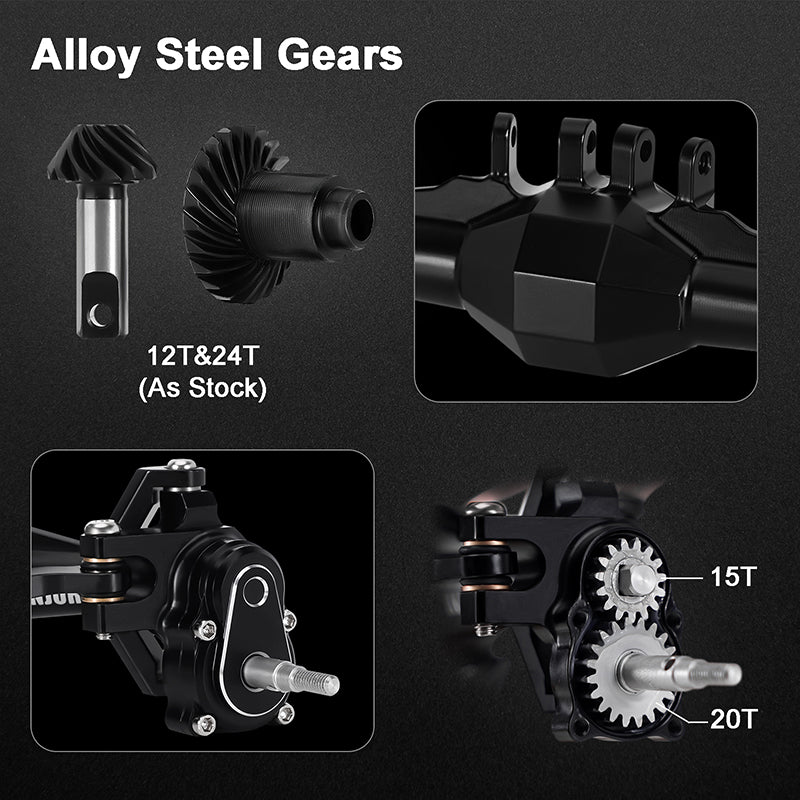

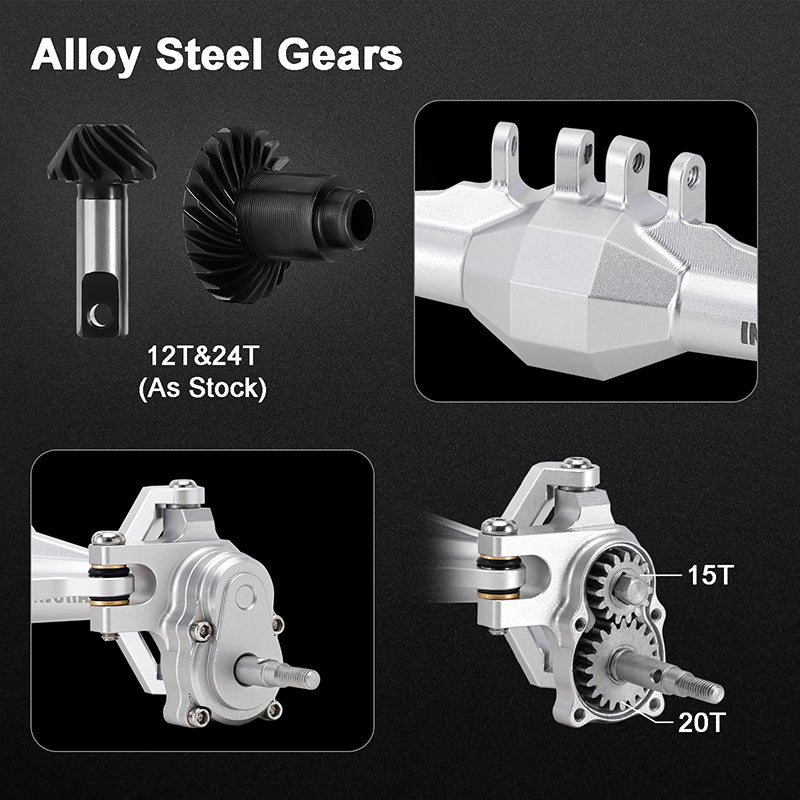

• Come with Hardened CVD shafts, 12/24T axle gears, 15/20T portal gears

Specifications:

• Housing Material: Aluminum
• Gear Material: 20CrMo Alloy Steel
• CVD Shaft Material: Hardened Steel
• Axle Gears: 24T/12T (Same as Stock)

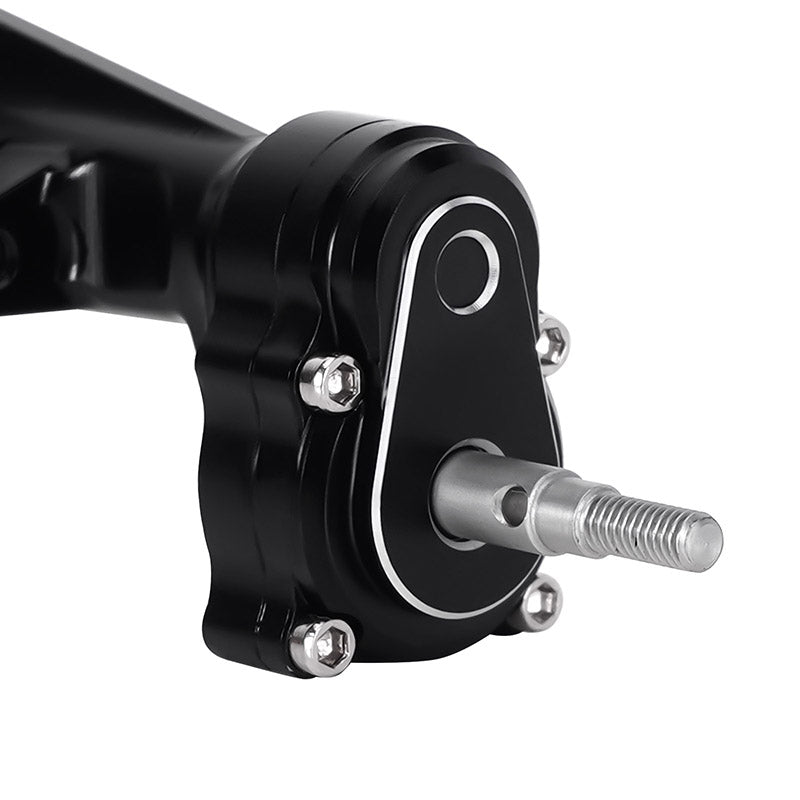

• Underdrive Portal Gears: 15T/20T (Decrease Speed 25%)
• Total Length: 124mm (4.88in)
• Offset: 8.9mm
• Front Axle Weight: 69g (0.152lb)
• Rear Axle Weight: 53g (0.117lb)
