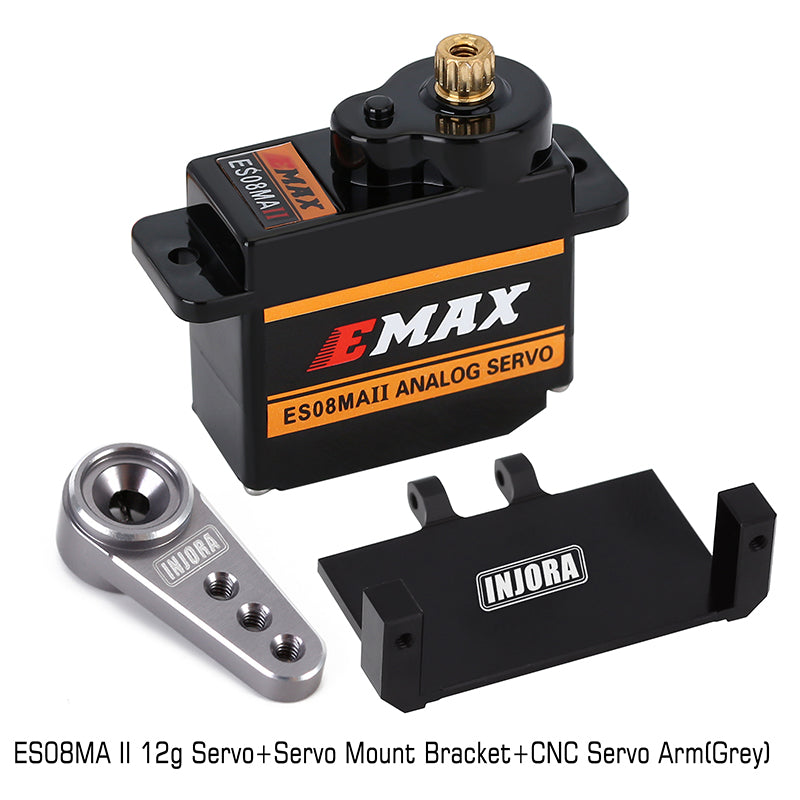

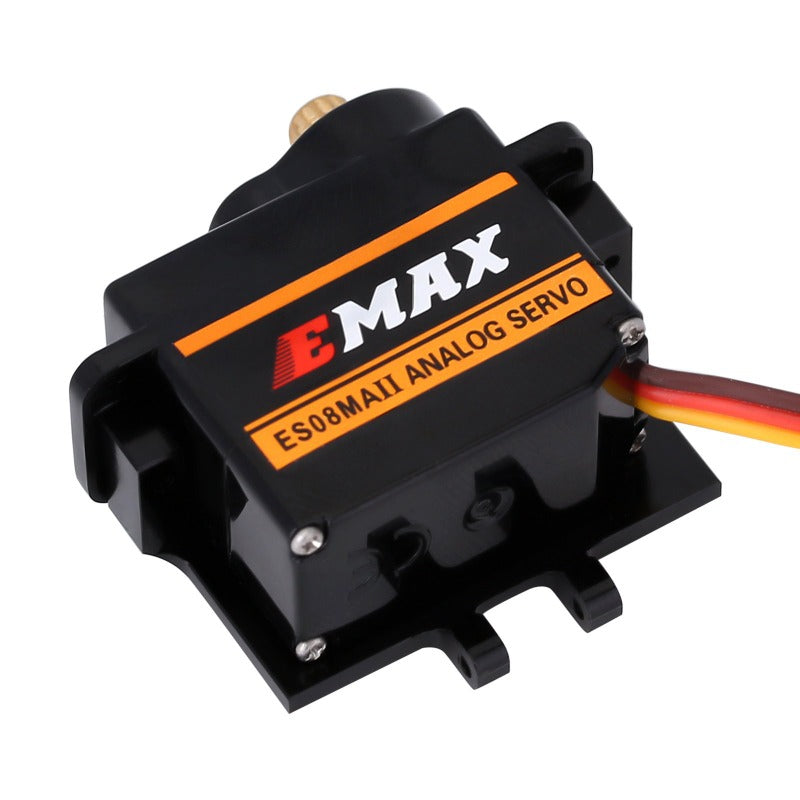

[US Warehouse] INJORA EMax ES08MA II 12g Analog Metal Gear Servo with Mount & Arm for Axial SCX24 AX24

Description

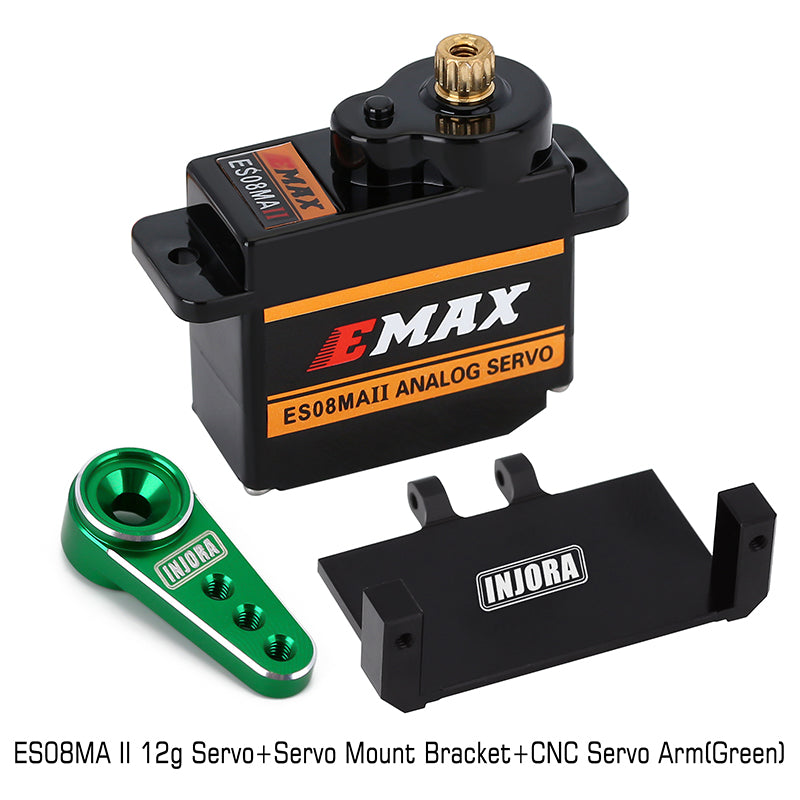

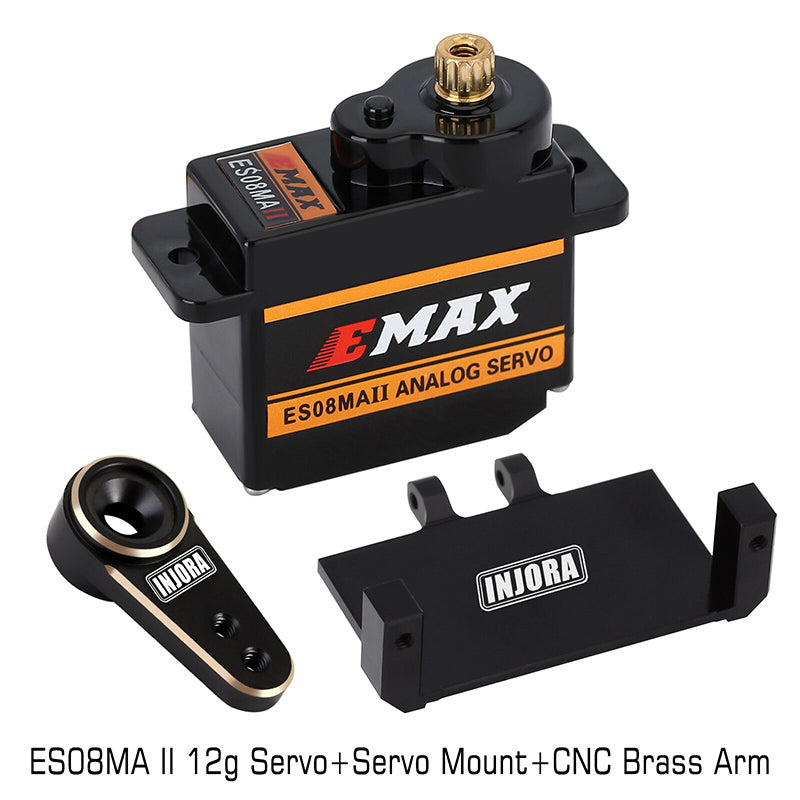

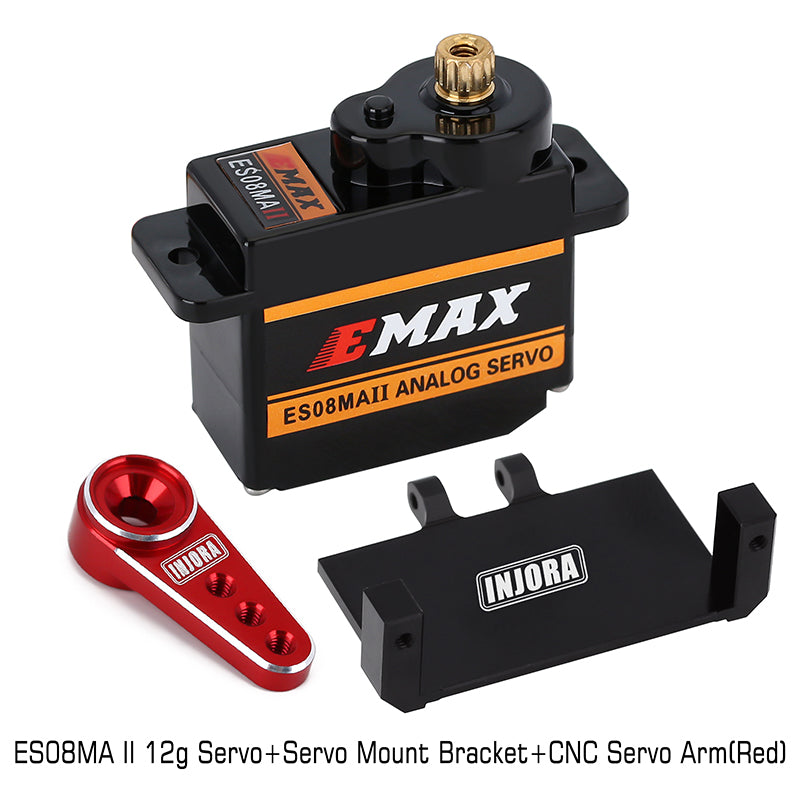

INJORA EMax ES08MA II 12g Analog Metal Gear Servo with Mount & Arm for RC Car Model Parts Axial SCX24 Upgrade Parts
Note:

• Some new scx24 cars & AX24 cars use coarse deep thread screws on the steering links, which is not compatible with our servo horn. So I suggest you use the steering links that with normal threaded M1.4 screws.
• Compatible with scx24 stock plastic axles and INJORA scx24 axles
• Compatible with both Y link and front 4 links

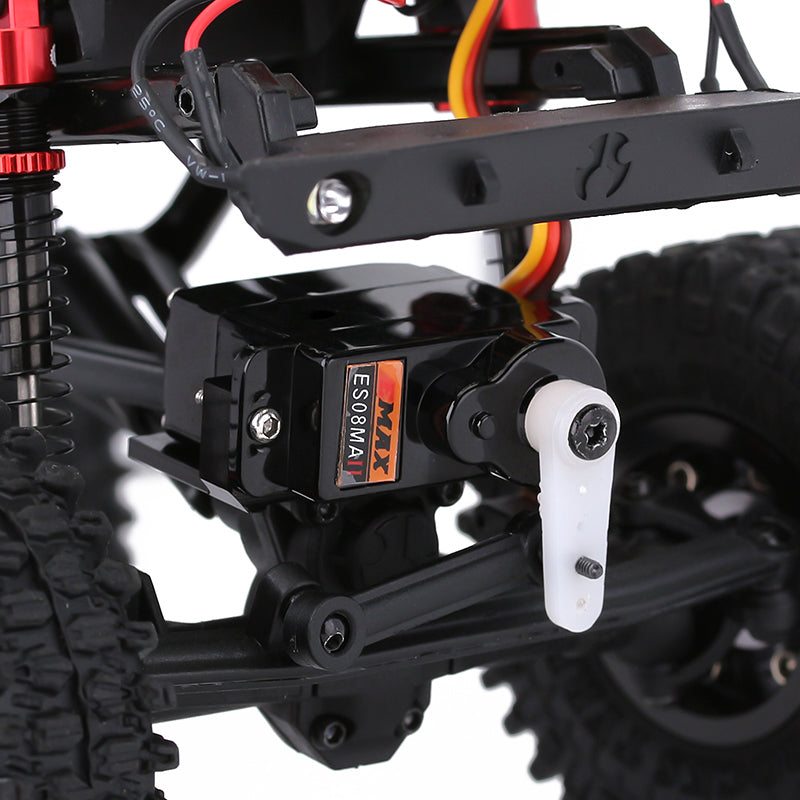

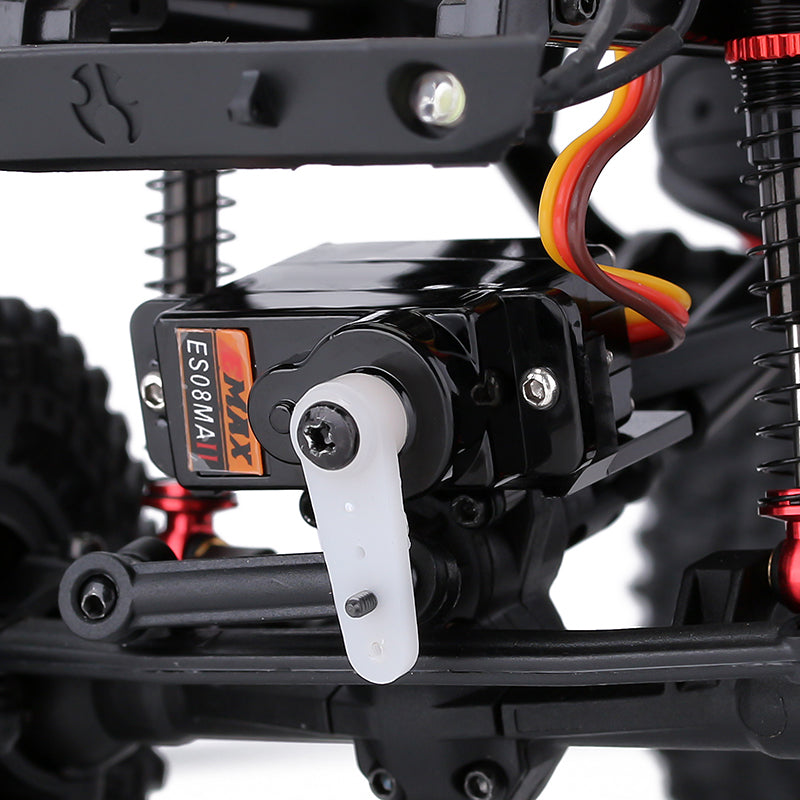

• Please use both this servo and the INJORA servo mount
• Please set the endpoints correctly to avoid burning the servo!!!
• Plug it into channel 1 and check that the yellow wire is at the top, don’t make it upside down.

Suit for: 1/24 rc rock crawler Axial SCX24 AX24

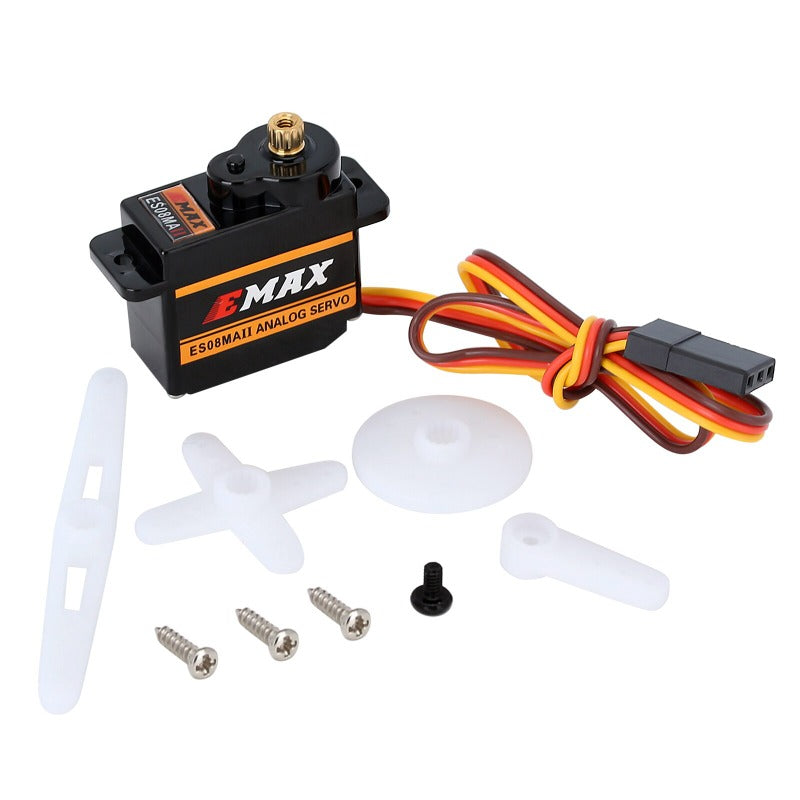

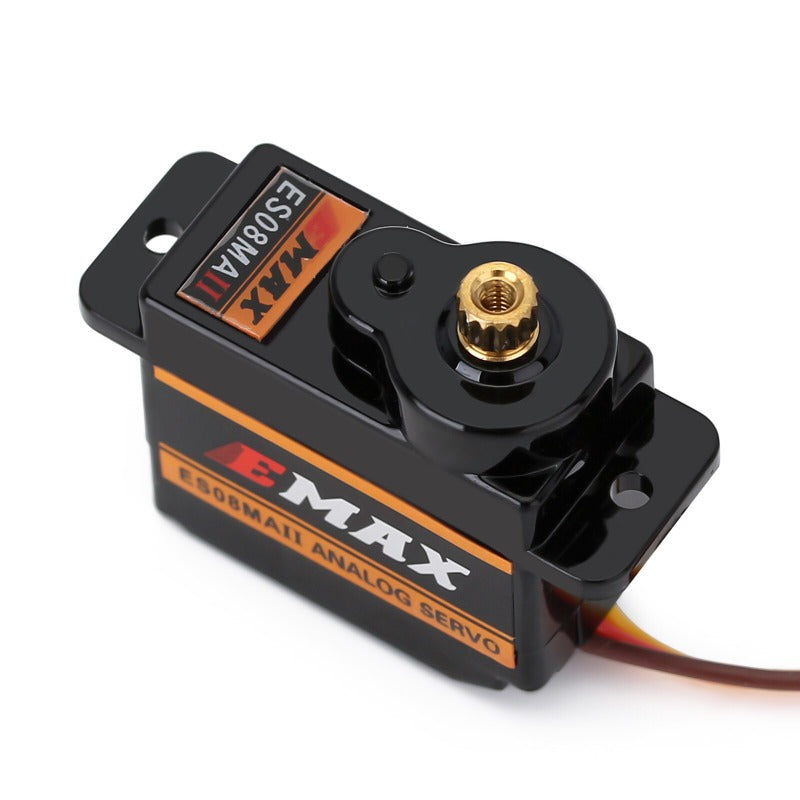

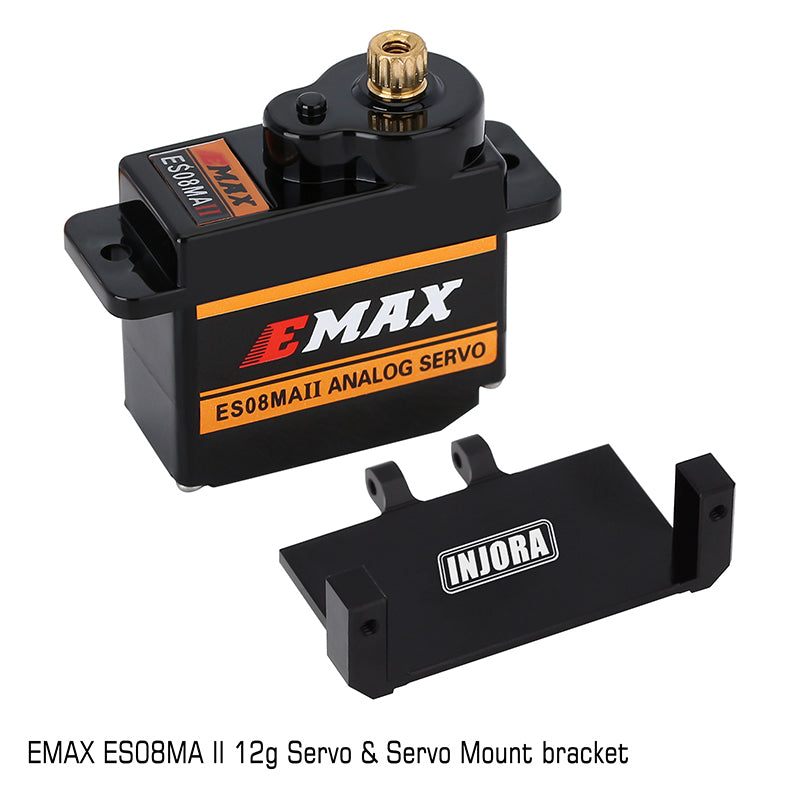

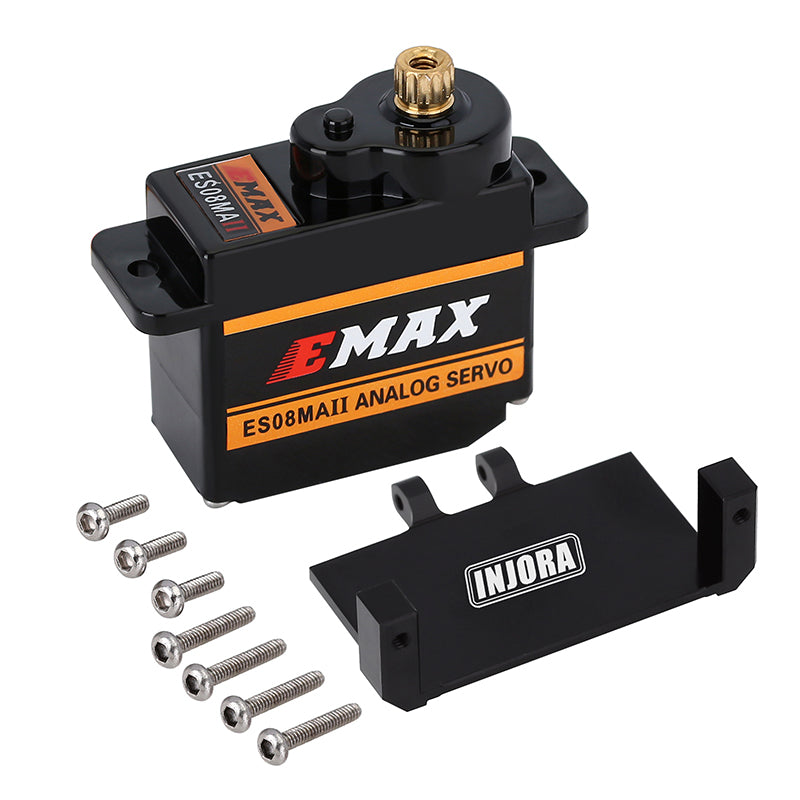

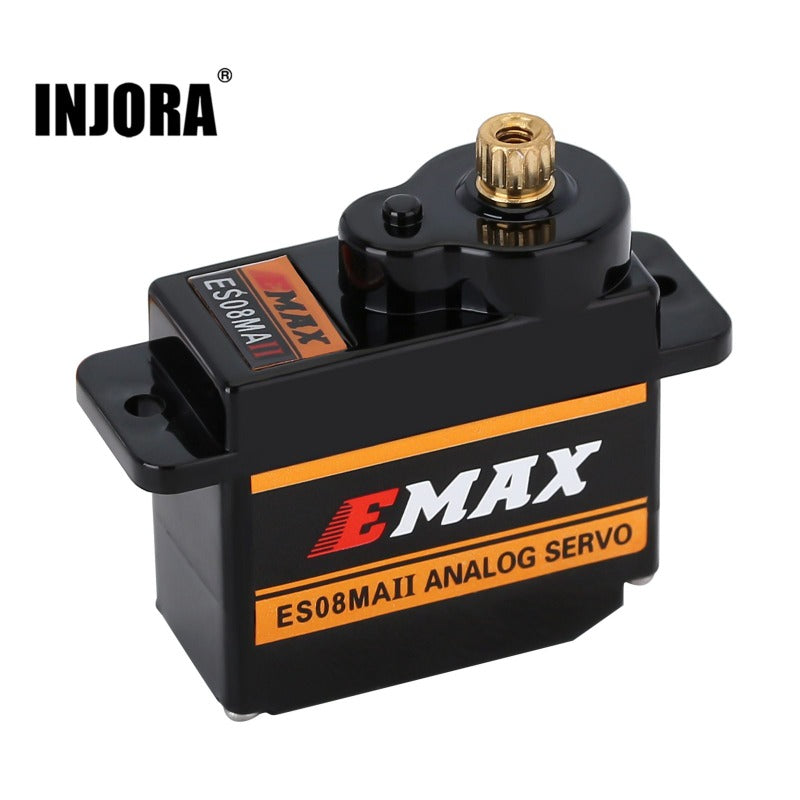

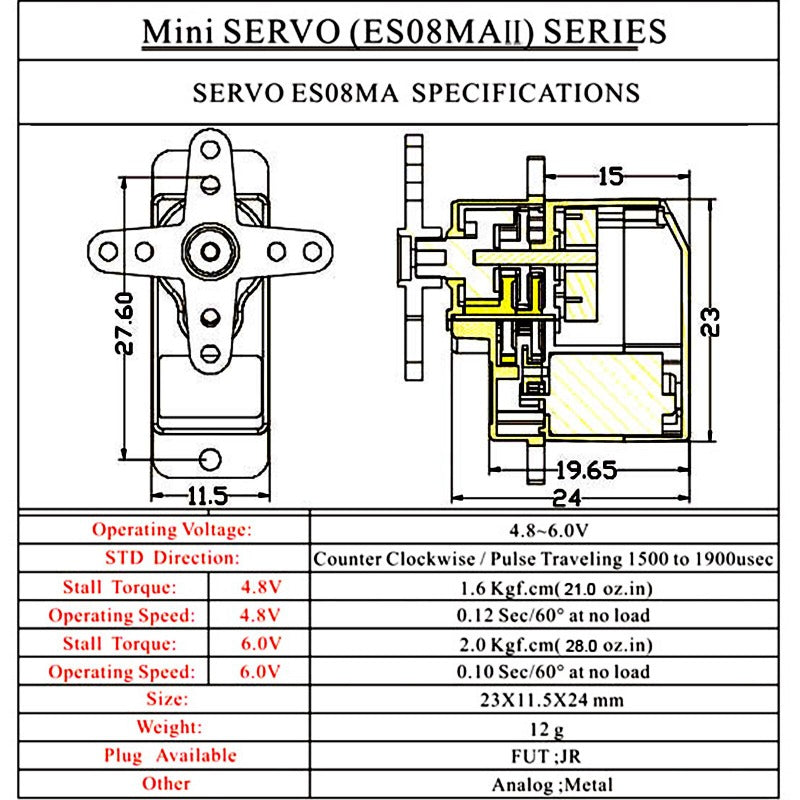

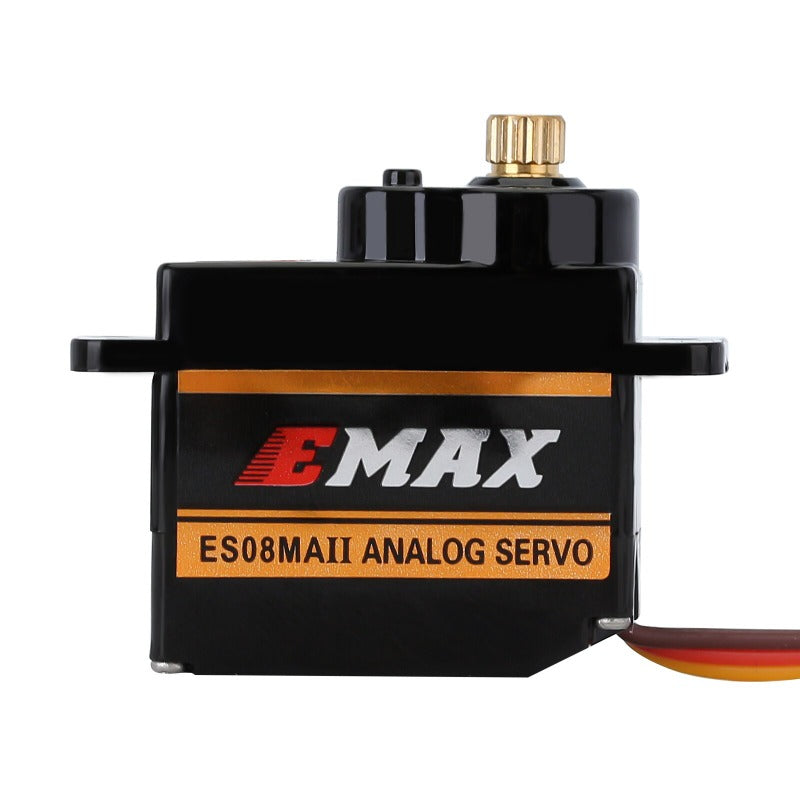

Servo Specifications:

• Item: ES08MA II Servo
• Voltage Input: 4.8-6V
• Standard Direction: Counter Clockwise
• Stall Torque: 4.8V: 21 oz/in , 6.0V: 25.2 oz/in
• Operating Speed: 4.8V: 0.12 Sec/60∼ , 6.0V: 0.10 Sec/60∼
• Dimensions: 23×11.5x24mm (LxWxH)
• Weight: 12g
• Gear Train: Metal
• Servo Type: Analog
• 15T

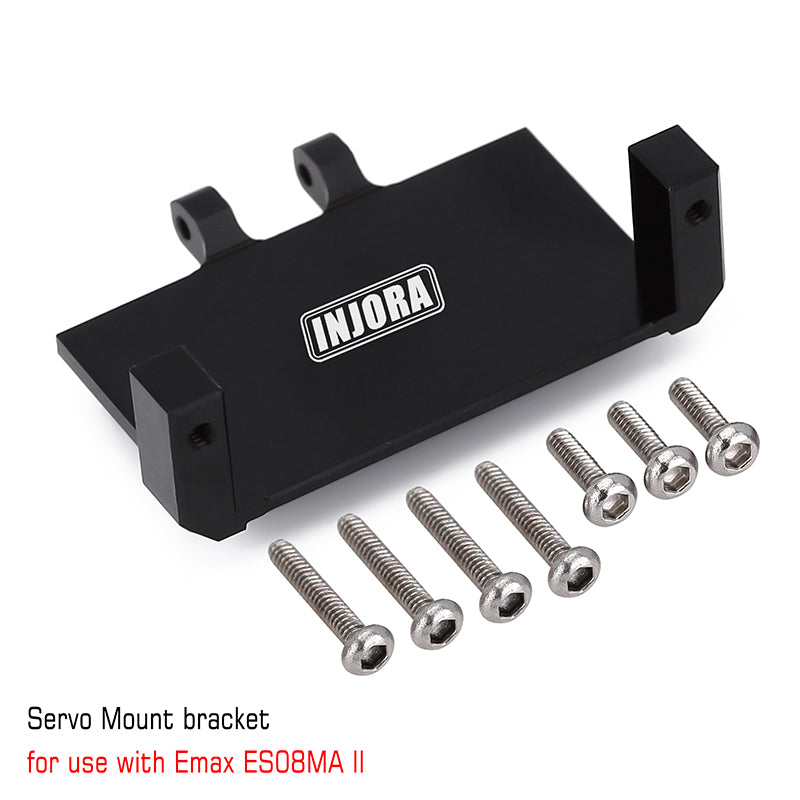

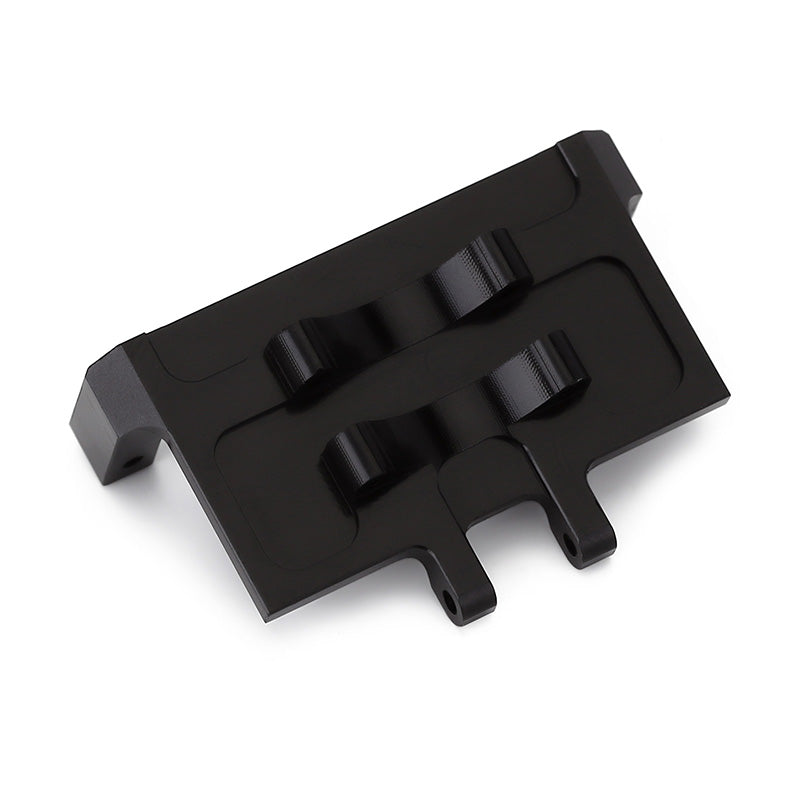

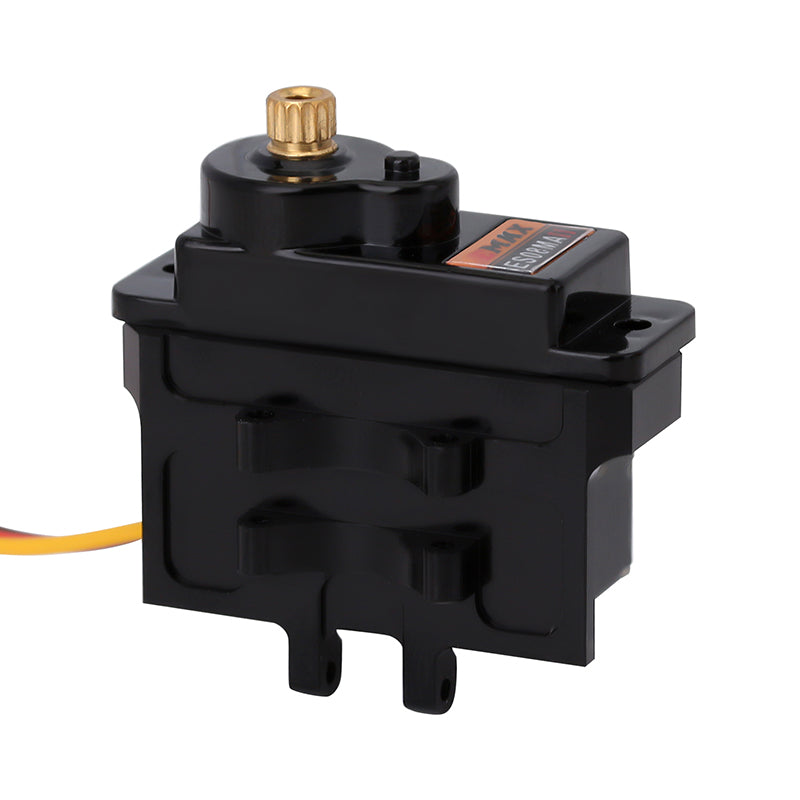

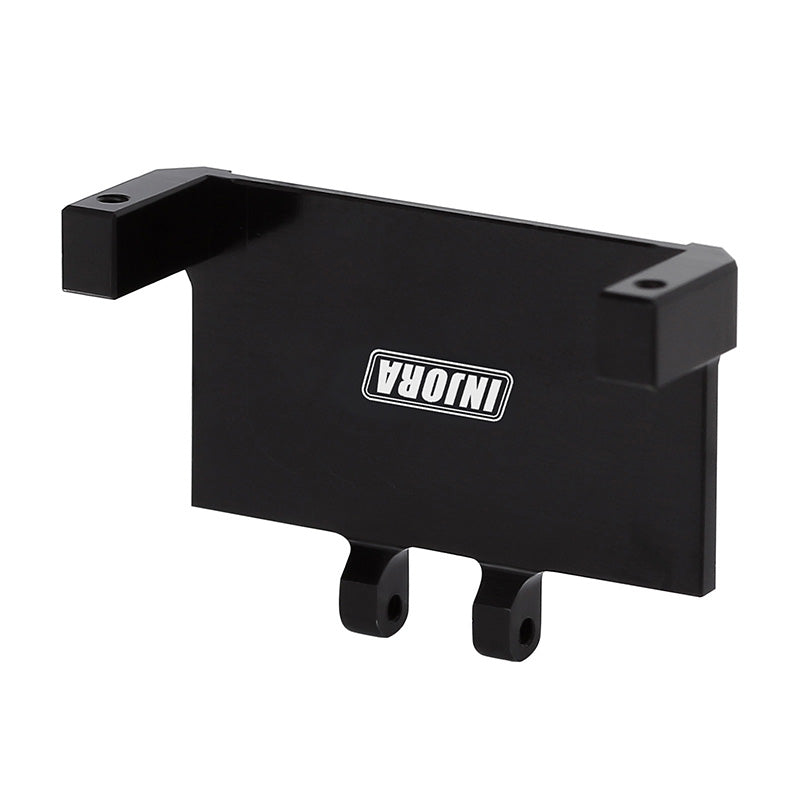

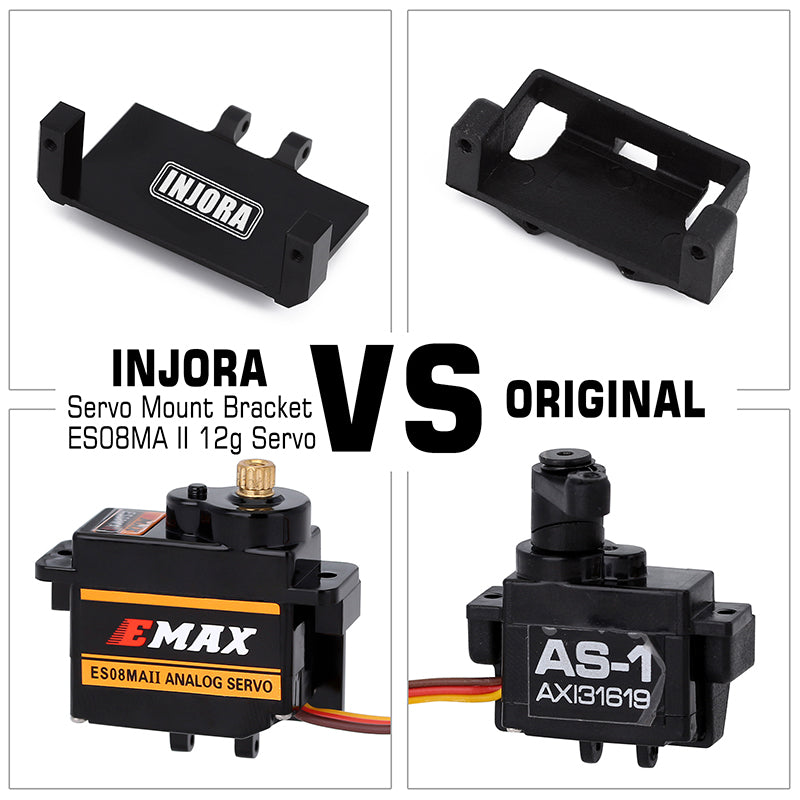

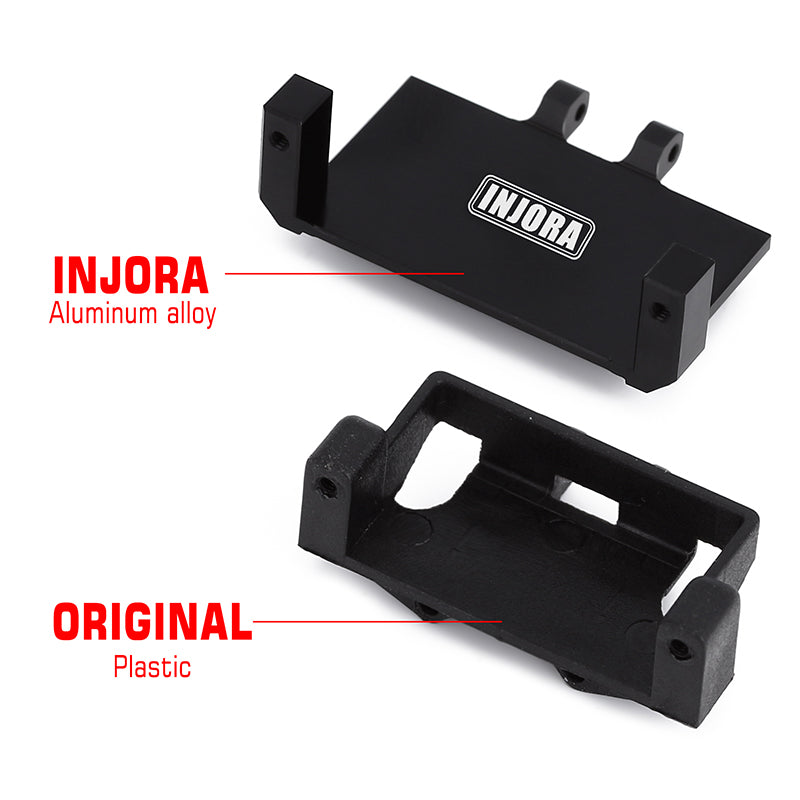

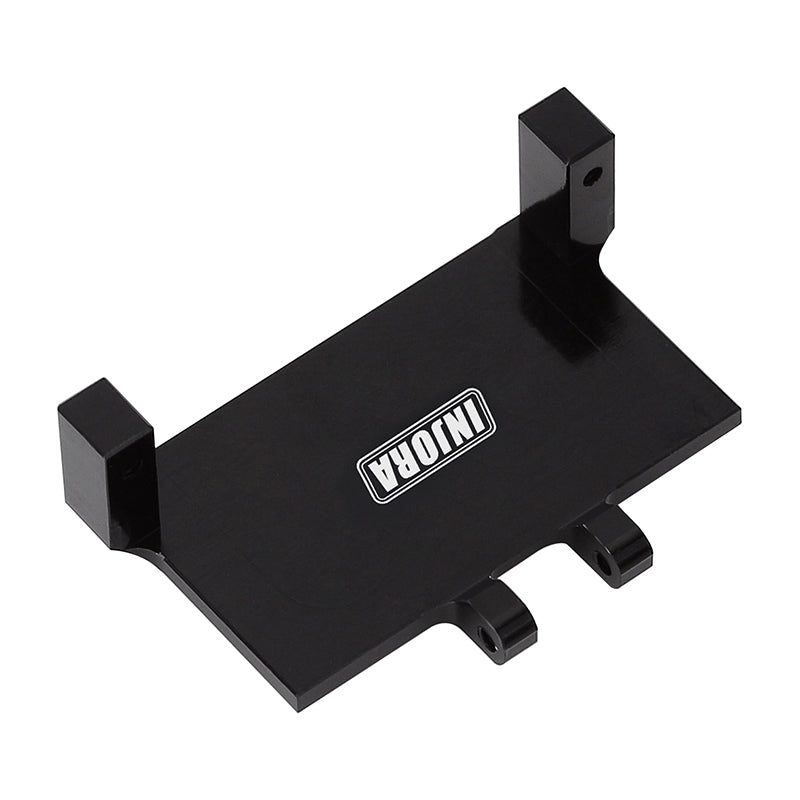

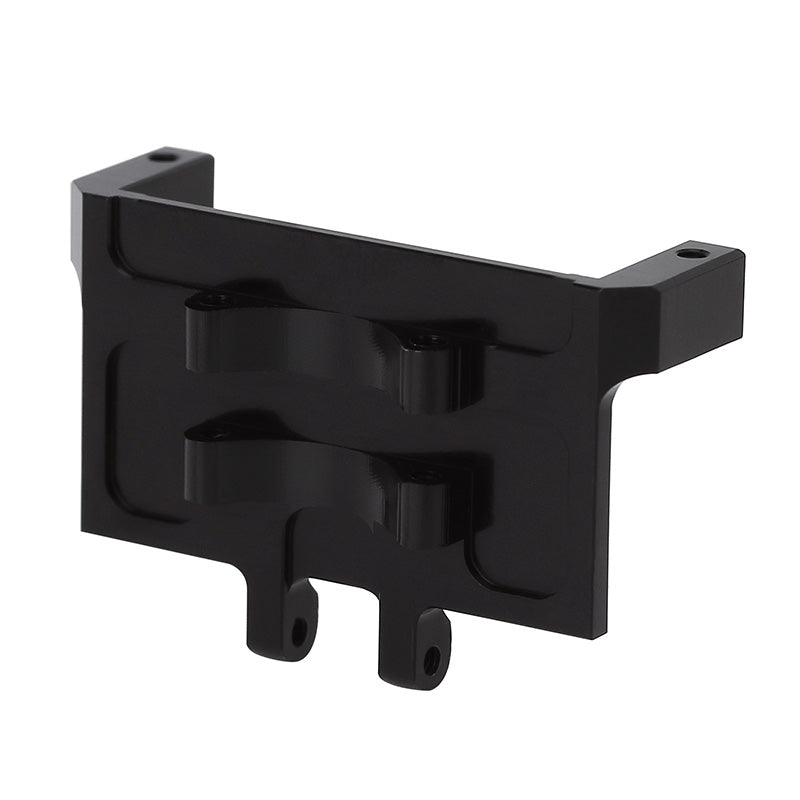

Servo Mount Bracket Specifications:

• Material: Aluminum
• Color: Black
• Use with scx24 stock axle or INJORA aluminium axle

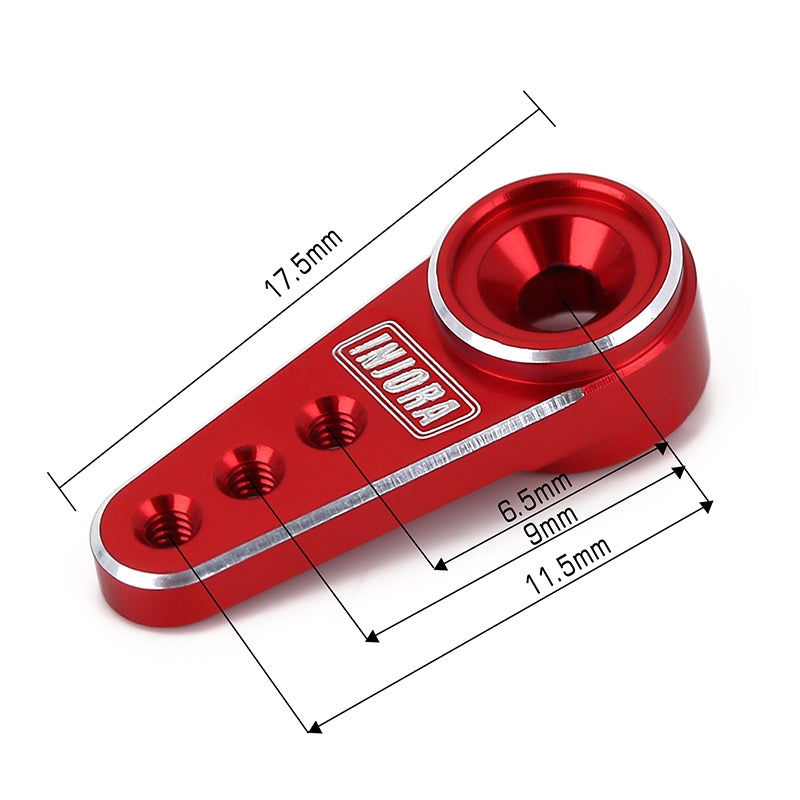

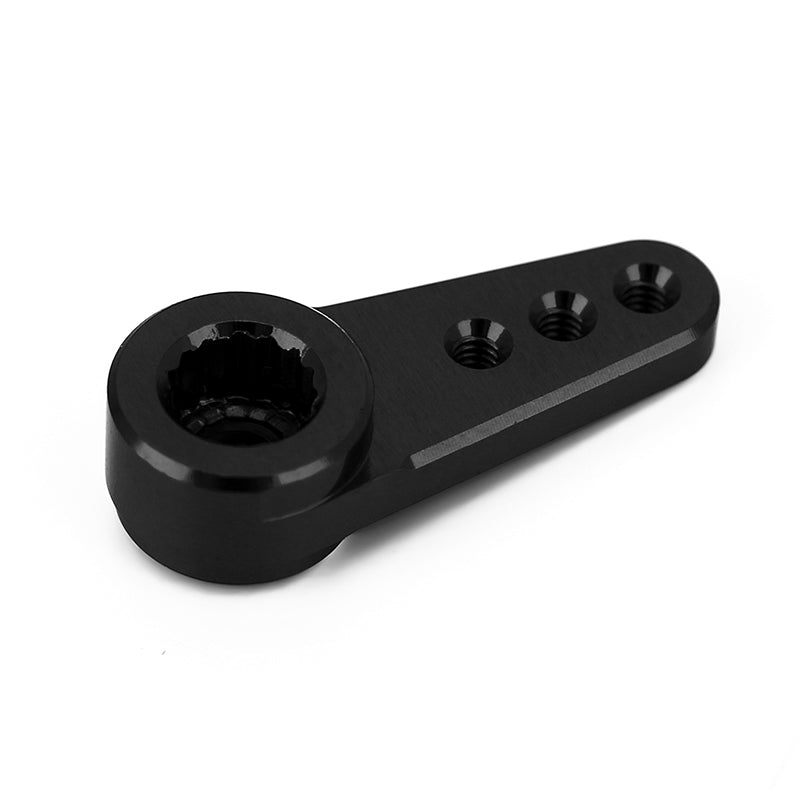

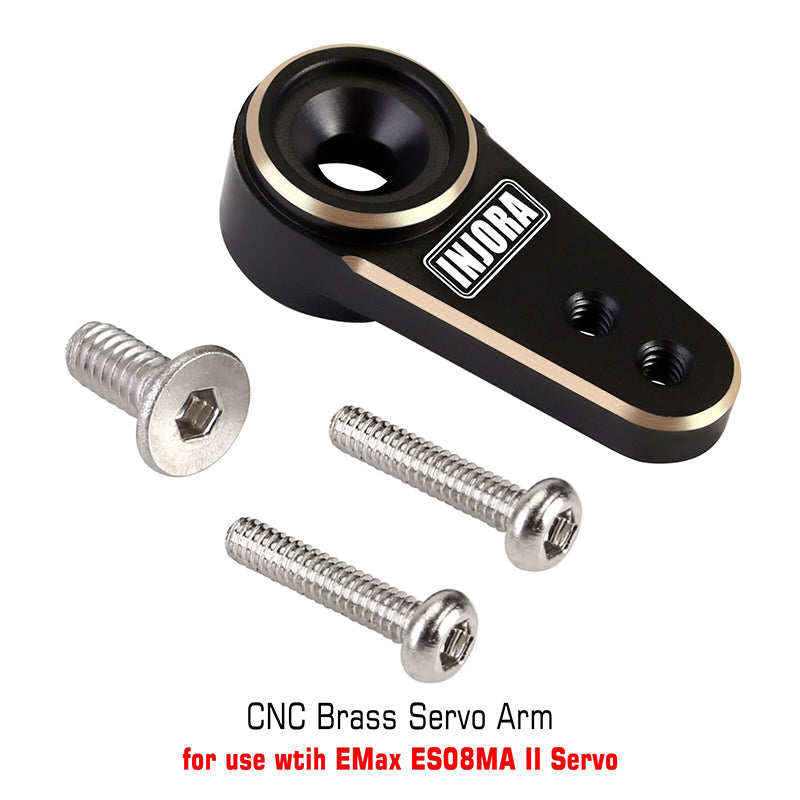

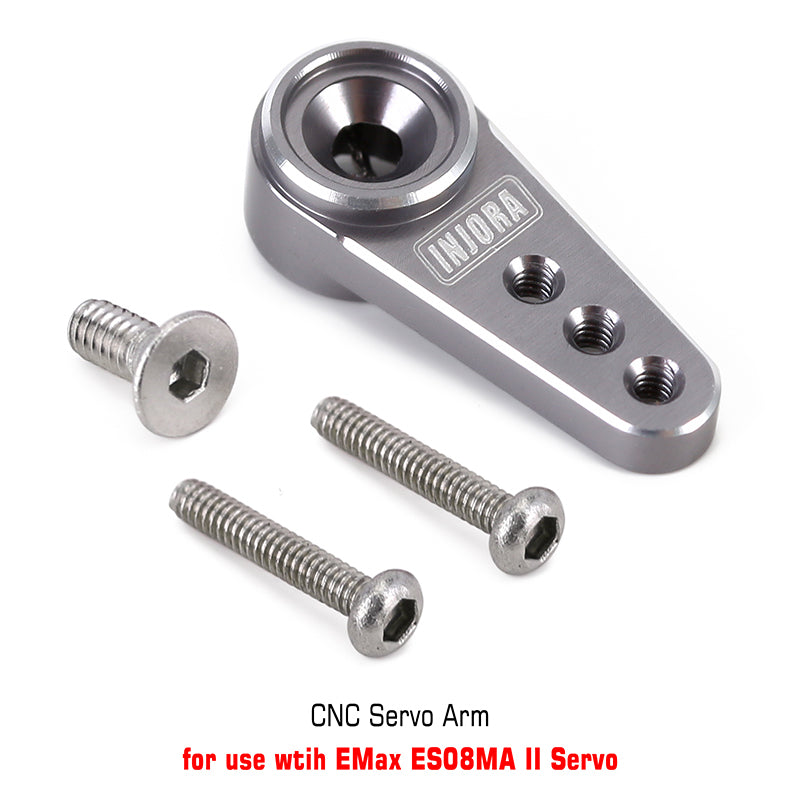

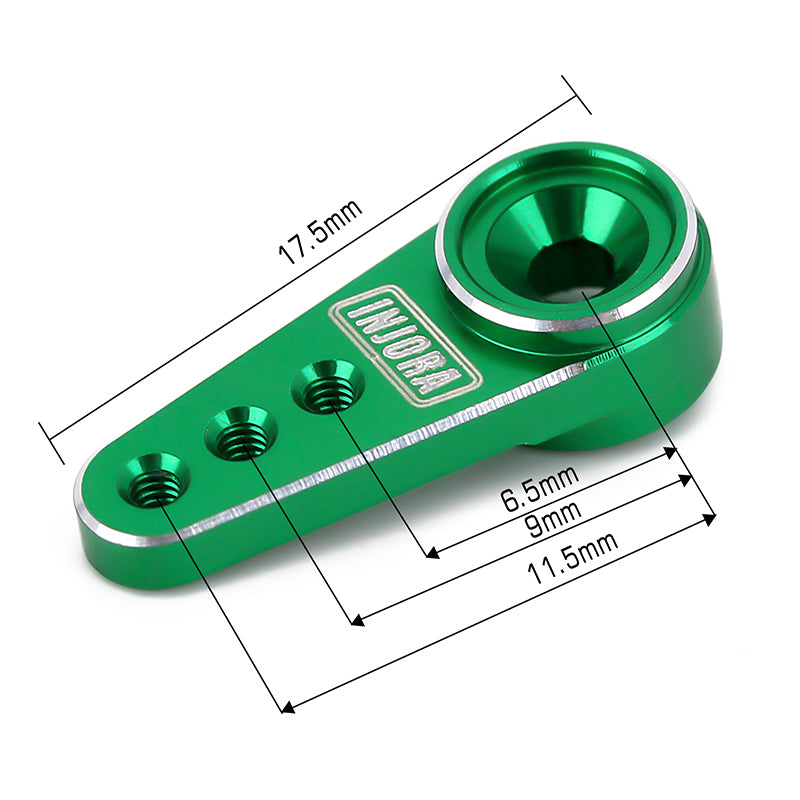

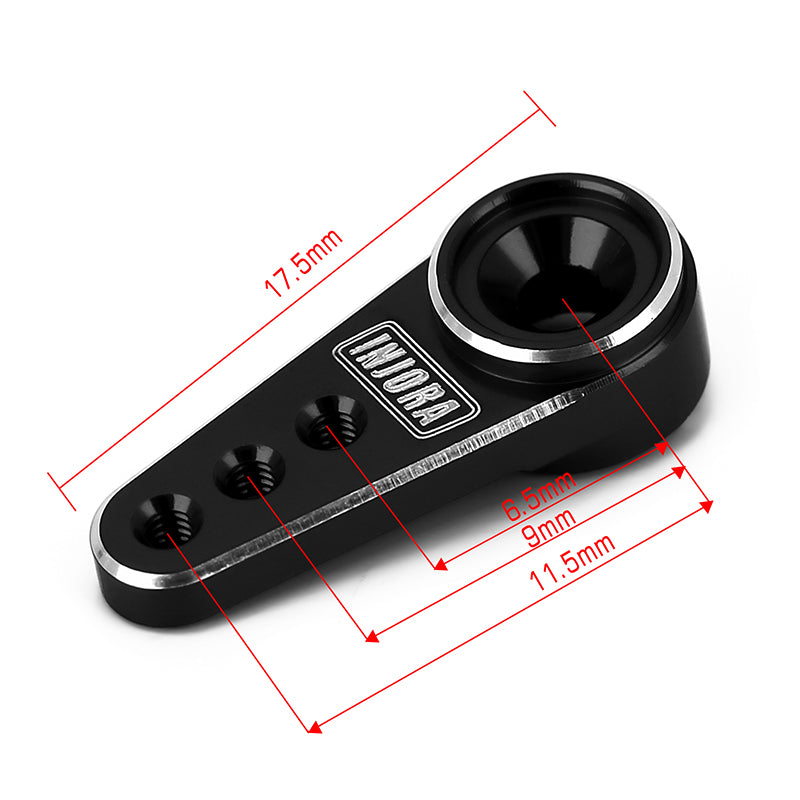

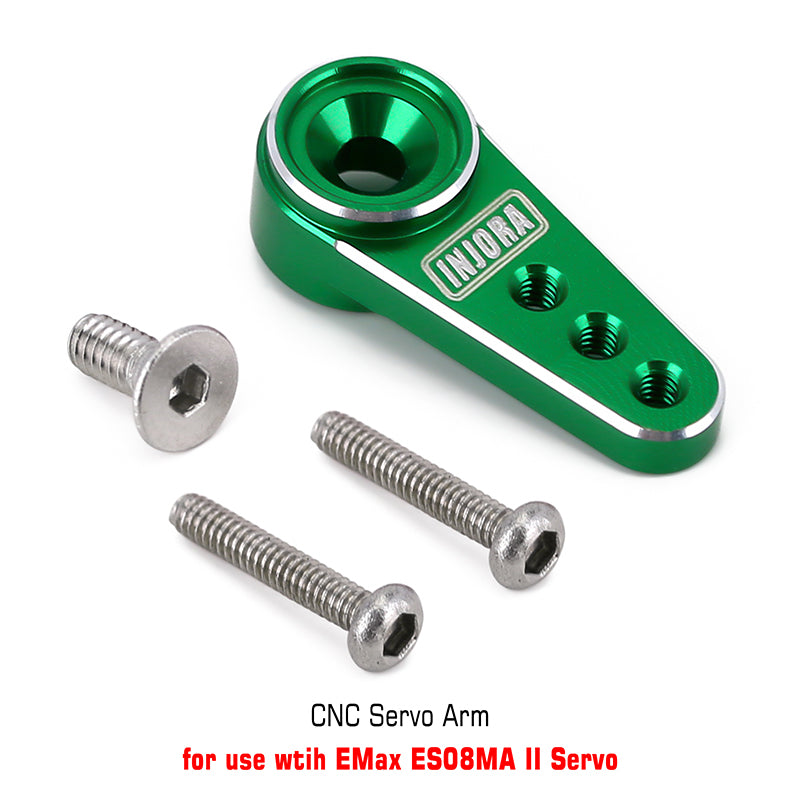

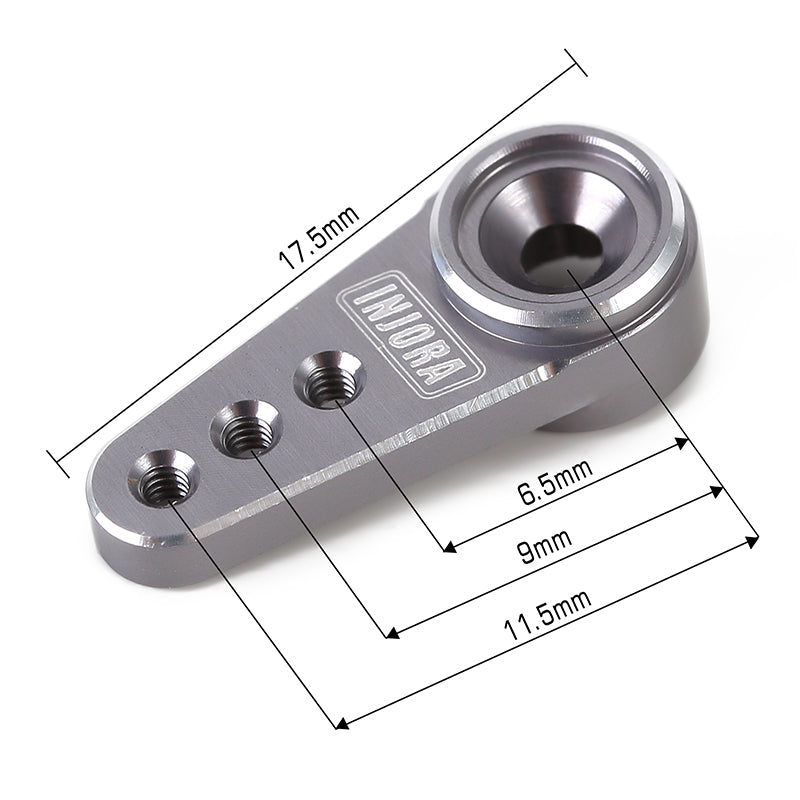

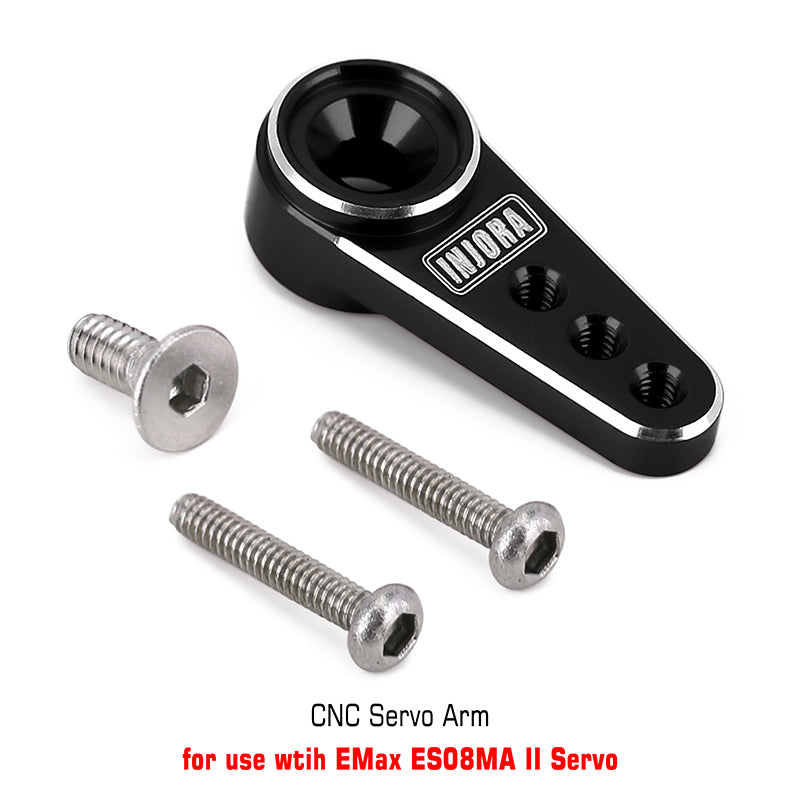

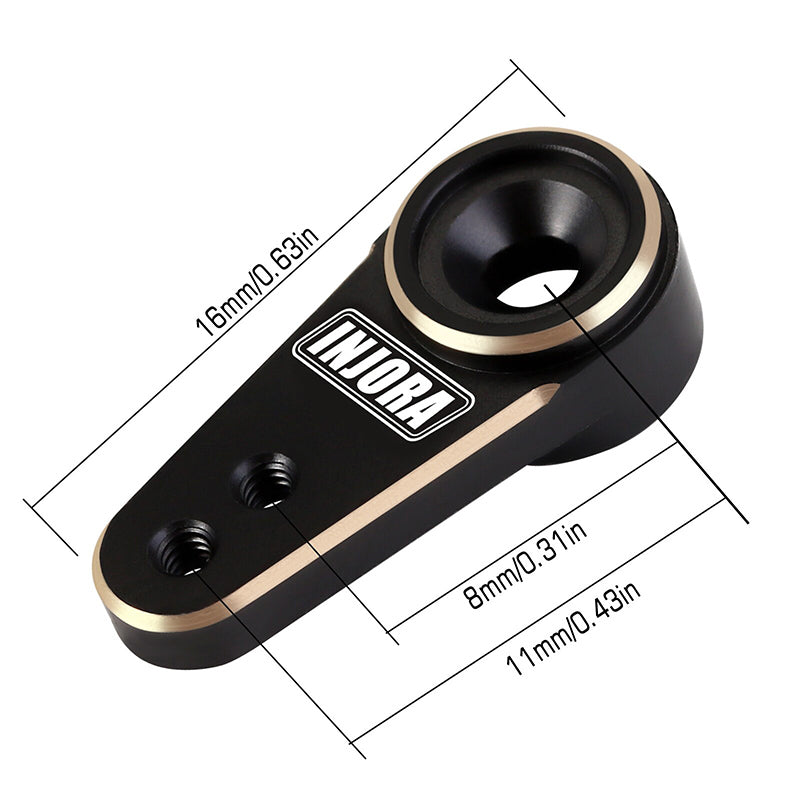

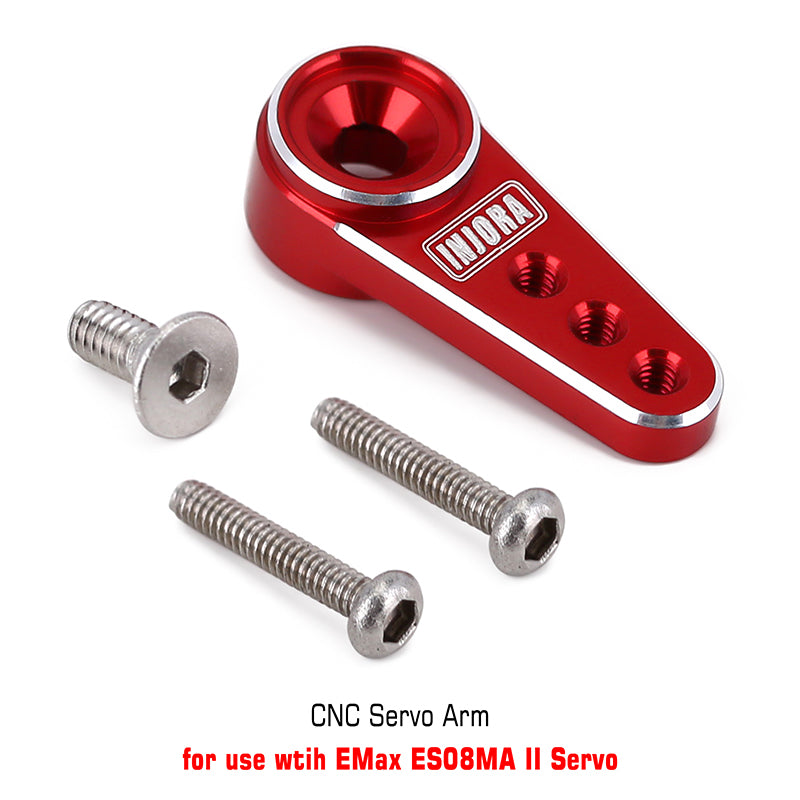

Servo Arms Specifications:

• Item: ES08MA II Servo Arm
• Material: Aluminum, Brass
• Color: Black, Red, Green, Grey, Black Gold
• Use with Emax ES08MA II Servo (For Axial SCX24 Crawler)
